| TOP | ONLUCHTINGS NIPPELS | ||||||||||||||||||
|
|
|
|
|
|||||||||||||||
 |
|
 |
|||||||||||||||||
| Hoofd menu | Diversen menu | Volgende | |||||||||||||||||
| metrisch | ONTLUCHTINGS NIPPELS METRISCH | |||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||

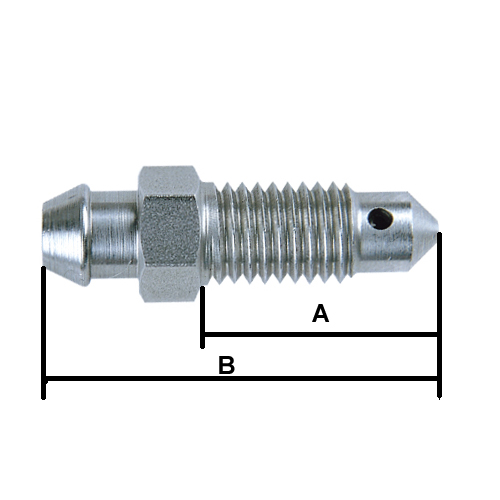

| B= 28,42mm A=15,87mm | ||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||
| B= 27,09mm A=16,17mm | B= 29,60mm, A=19,10mm | B= 35,52mm, A=20,03mm | B= 29,60mm, A=19,10mm | |||||||||||||||||||||
|
|
|
|
 |
||||||||||||||||||||
| B= 23,35mm A=12,60mm | B= 23,35mm A=12,60mm | B= 25,52mm A=15,91mm | ||||||||||||||||||||||
|
|
|
Schroefdraad tabel. |
 |
|
||||||||||||||||||||
| Hoofd menu | Diversen menu | Top van de pagina | Volgende | |||||||||||||||||||||
| unf | ONTLUCHTINGS NIPPELS METRISCH | |||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||
|
|
|||||||||||||||||||||||
|
|
|
Schroefdraad tabel. |
|
|
||||||||||||||||||||
| Hoofd menu | Diversen menu | Top van de pagina | Volgende | |||||||||||||||||||||
| lijst |
Toepassings lijst Motorfietsen |
 |
| BMW | PRE 1996 | FRONT | 10 x1.00 |
| n | PRE 1996 | REAR | 10 x 1.00 |
| n | LATE 1996 | FRONT | 10 x 1.00 |
| n | LATE 1996 | REAR | 6 X 1.00 |
| n | K-MODELS | FRONT | 10 x 1.00 |
| n | K-MODELS | REAR | 10 x 1.00 |
| DUCATI | n | FRONT | 3/8 x 24 |
| n | n | REAR | 3/8 x 24 |
| n | n | CLUTCH | 3/8 x 24 |
| HARLEY DAVIDSON | FL 58-72 | REAR | 1/4 x 28 |
| n | FL 73-79 & XL 73-77 & | FRONT | 1/4 x 28 |
| n | FX 71-77 | REAR | 1/4 x 28 |
| n | n | n | n |
| n | FL 80-ON FX 78-ON | FRONT | 3/8 x 24 |
| n | XL78 ON DYNA 91-ON | REAR | 3/8 x 24 |
| HONDA | n | FRONT | 8 x 1.25 |
| n | n | REAR | 8 x 1.25 |
| n | n | CLUTCH | 8 x 1.25 |
| KAWASAKI | n | FRONT | 7 x 1.00 |
| n | n | REAR | 7 x 1.00 |
| n | n | CLUTCH | 8 x 1.25 |
| MOTO GUZZI | (YEAR DEPENDANT) | FRONT/REAR | 6 x 1.00 |
| (yean | (YEAR DEPENDANT) | FRONT/REAR | 10 x 1.00 |
| NORTON | n | FRONT/REAR | 3/8 x 24 |
| SUZUKI | n | FRONT | 7 x 1.00 |
| n | n | REAR | 7 x 1.00 |
| n | n | CLUTCH | 7 x 1.00 |
| BANDIT 98- | FRONT | 8 x 1.25 | |
| BANDIT 98- | REAR | 7 x 1.00 | |
| BANDIT 98- | CLUTCH | 8 x 1.25 | |
| TRIUMPH | EARLY | FRONT | 3/8 x 24 |
| n | n | REAR | 3/8 x 24 |
| n | n | CLUTCH | 3/8 x 24 |
| LATE | FRONT | 8 x 1.25 | |
| n | n | REAR | 8 x 1.25 |
| n | n | CLUTCH | 8 x 1.25 |
| YAMAHA | FRONT | 8 x 1.25 | |
| REAR | 8 x 1.25 | ||
| CLUTCH | 8 x 1.25 | ||
| auto | |
|
Toepassings lijst Automobielen |
|
|
Deze lijst komt van het internet, contoleer aub |
|
|
PBR System - 1 Speed Bleeder per Caliper |
M10X1,00 |
|
Alcon System - 2 Speed Bleeders per Caliper |
3/8X24 |
|
AP Racing Calipers |
M10X1,00 |
|
Girling |
3/8X24 |
|
Stoptech Calipers |
M10X1,00S |
|
Rotora Calipers (FC4) 2 per caliper |
M10X1,00S |
|
Rotora Calipers (FC6) |
M10X1,00 |
|
Performance Machine Calipers - 4 piston |
3/8X24 |
|
Performance Machine Calipers - 6 piston |
1/4X28 |
|
GMA |
1/4X28 |
|
Lockheed |
1/4X28 |
|
Wilwood |
1/4X28 |
|
Front Force 10 3-piston Calipers |
5/16X24L |
|
Outlaw Racing Calipers |
1/4X28 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
| Regal |
73-78 |
3/8X24 |
- |
- |
5/16X24 |
| Regal |
79-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Regal |
00-02 |
M10X1,50 |
M10X1,50 |
- |
M8X1,25 |
|
Regal |
03-04 |
M10X1,50 |
M10X1,50 |
- |
- |
| Century |
78-02 |
M10X1,50 |
- |
- |
M8X1,25 |
| LeSabre |
86-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Chevrolet/GMC |
|||||
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
Acadia |
07-08 |
M10X1,00S |
- |
|
|
|
Astro, Safari Mini Van |
85-02 |
M10X1,50 |
|
|
M8X1,25 |
|
|
03-05 |
M10X1,50 |
M10X1,00 |
|
|
|
Avalanche |
07-08 |
M10X1,50 |
M10X1,00 |
|
|
|
Avalanche 1500 |
02 |
M10X1,50 |
M10X1,00 |
|
|
|
|
03-05 |
M10X1,50 |
M10X1,00 |
|
M10X1,00 |
|
|
06 |
M10X1,50 |
M10X1,00 |
|
|
|
Avalanche 2500 |
02-06 |
M10X1,50 |
M10X1,50 |
|
|
|
Belair, Biscayne |
63-70 |
3/8X24 |
|
3/8X24L |
5/16X24 |
|
|
71-76 |
3/8X24 |
|
|
5/16X24 |
|
|
77-93 |
M10X1,50 |
|
|
M8X1,25 |
|
|
94-96 |
M10X1,50 |
M10X1,00S |
|
M8X1,25 |
|
|
00-08 |
M10X1,50 |
M10X1,50 |
|
|
|
Beretta |
87-96 |
M10X1,50 |
|
|
M8X1,25 |
|
Blazer, Jimmy |
82-96 |
M10X1,50 |
|
|
M8X1,25 |
|
|
97-03 |
M10X1,50 |
M10X1,00 |
|
M8X1,25 |
|
|
04-05 |
M10X1,50 |
M10X1,00 |
|
|
|
C10, 1500 Pickup |
64-70 |
|
|
3/8X24 |
3/8X24 |
|
|
71-73 |
3/8X24 |
|
|
3/8X24 |
|
|
74-77 |
3/8X24 |
|
|
5/16X24 |
|
|
78-91 |
M10X1,50 |
|
|
M8X1,25 |
|
2 1/2" rear shoe |
92-99 |
M10X1,50 |
|
|
M10X1,50 |
|
2 3/4" rear shoe |
92-99 |
M10X1,50 |
|
|
M8X1,25 |
|
C20, 2500 Pickup |
65-70 |
|
|
3/8X24 |
3/8X24 |
|
|
71-78 |
3/8X24 |
|
|
3/8X24 |
|
|
79-00 |
M10X1,50 |
|
|
M8X1,25 |
|
C30, 3500 Pickup |
71-78 |
3/8X24 |
|
|
3/8X24 |
|
|
79-98 |
M10X1,50 |
|
|
M8X1,25 |
|
|
99-01 |
M10X1,50 |
M10X1,50 |
|
M8X1,25 |
|
|
02 |
M10X1,50 |
M10X1,50 |
|
|
|
Camaro |
67-68 |
5/16X24 |
|
5/16X24 |
5/16X24 |
| Z28 |
69 |
5/16X24 |
5/16X24 |
|
|
| Exc. Z28 |
69 |
|
|
5/16X24 |
5/16X24 |
|
|
69-81 |
3/8X24 |
|
|
5/16X24 |
|
|
82-87 |
M10X1,50 |
|
|
M8X1,25 |
|
w/ disc opt. (89-91) |
88-92 |
M10X1,50 |
M10X1,00 |
|
M8X1,25 |
|
w/ disc opt. (88) |
88-92 |
M10X1,50 |
M10X1,50 |
|
M8X1,25 |
| w/ H.D. opt. |
88-93 |
M10X1,00 |
M10X1,00 |
|
|
|
|
93-97 |
M10X1,50 |
M10X1,50 |
|
M8X1,25 |
|
|
98-02 |
M10X1,00 |
M10X1,00 |
|
|
|
Caprice, Impala |
63-70 |
3/8X24 |
|
3/8X24L |
5/16X24 |
|
|
71-76 |
3/8X24 |
|
|
5/16X24 |
|
|
77-93 |
M10X1,50 |
|
|
M8X1,25 |
|
|
94-96 |
M10X1,50 |
M10X1,00S |
|
M8X1,25 |
|
|
00-08 |
M10X1,50 |
M10X1,50 |
|
|
|
Cavalier |
82-02 |
M10X1,50 |
|
|
M8X1,25 |
|
|
03-05 |
M10X1,50 |
|
|
- |
|
Celebrity |
82-90 |
M10X1,50 |
|
|
M8X1,25 |
|
Chevette |
76-78 |
M8X1,25 |
|
|
M8X1,25 |
|
|
79-85 |
M10X1,50 |
|
|
M8X1,25 |
|
Citation |
80-85 |
M10X1,50 |
|
|
M8X1,25 |
|
Classic |
05 |
M10X1,00 |
|
|
M8X1,25 |
|
Cobalt |
05-08 |
M10X1,00 |
M10X1,00 |
|
|
|
Colorado/Canyon |
04-08 |
M10X1,50 |
|
|
- |
|
Corsica |
87-96 |
M10X1,50 |
|
|
M8X1,25 |
|
Corvair |
65-69 |
|
|
5/16X24 |
5/16X24 |
|
Corvette |
56-65 |
|
|
3/8X24 |
3/8X24 |
| w/ disc |
65-82 |
5/16X24 |
5/16X24 quantity 4, 2 per caliper |
|
|
|
|
84-87 |
M10X1,00S |
M10X1,00S |
|
|
|
|
88-96 |
M10X1,00 |
M10X1,00 |
|
|
|
|
97-09 |
M10X1,00S |
M10X1,00S |
|
|
|
El Camino |
65-68 |
|
|
5/16X24 |
5/16X24 |
|
|
69-77 |
3/8X24 |
|
|
5/16X24 |
|
|
78-88 |
M10X1,50 |
|
|
M8X1,25 |
|
Equinox |
05-06 |
M8X1,25 |
M10X1,00S |
|
|
|
|
07-08 |
M10X1,00S |
M10X1,00S |
|
|
|
Express, Savana 1500 Van |
92-02 |
M10X1,50 |
|
|
- |
|
|
03-08 |
M10X1,50 |
M10X1,00 |
|
|
|
Express, Savana 2500 Van |
96-02 |
M10X1,50 |
|
|
- |
|
|
03-08 |
M10X1,50 |
M10X1,00 |
|
|
|
Express, Savana 3500 Van |
96-02 |
M10X1,50 |
|
|
- |
|
|
03-08 |
M10X1,50 |
M10X1,00 |
|
|
|
G10, 1500 Van |
72-73 |
3/8X24 |
|
|
3/8X24 |
|
|
74-75 |
3/8X24 |
|
|
5/16X24 |
|
|
76-77 |
3/8X24 |
|
|
5/16X24 |
|
|
78-98 |
M10X1,50 |
|
|
M8X1,25 |
|
G20, 2500 Van |
71-73 |
3/8X24 |
|
3/8X24L |
3/8X24 |
|
|
74-75 |
3/8X24 |
|
|
5/16X24 |
|
|
76-98 |
M10X1,50 |
|
|
M8X1,25 |
|
G30, 3500 Van |
71-75 |
3/8X24 |
|
|
3/8X24 |
|
|
76-78 |
3/8X24 |
|
|
3/8X24 |
|
|
79-96 |
M10X1,50 |
|
|
M8X1,25 |
|
HHR |
06-08 |
M10X1,00 |
|
|
- |
|
K10, 1500 4WD Sierra |
71-73 |
3/8X24 |
|
|
3/8X24 |
|
|
74-75 |
3/8X24 |
|
|
5/16X24 |
|
|
76-00 |
M10X1,50 |
|
|
M8X1,25 |
|
K20, 2500 4WD Sierra |
74-75 |
3/8X24 |
|
|
3/8X24 |
|
|
76--00 |
M10X1,50 |
|
|
M8X1,25 |
|
K30, 3500 4WD Sierra |
77-00 |
M10X1,50 |
|
|
M8X1,25 |
|
Lumina |
90-94 |
M10X1,50 |
M10X1,50 |
|
M8X1,25 |
|
|
95 |
M10X1,50 |
M10X1,50 |
|
|
|
|
96-01 |
M10X1,50 |
M10X1,50 |
|
M8X1,25 |
|
Lumina Van APV |
90-96 |
M10X1,50 |
|
|
M8X1,25 |
|
Malibu-Maxx |
04-08 |
M10X1,00 |
M10X1,00 |
|
|
|
Malibu, Chevelle |
69-77 |
3/8X24 |
|
|
5/16X24 |
|
|
78-83 |
M10X1,50 |
|
|
M8X1,25 |
| Malibu |
97-03 |
M10X1,00 |
|
|
M8X1,25 |
| Malibu |
04-07 |
M10X1,00 |
- |
|
|
|
Monte Carlo |
70-77 |
3/8X24 |
|
|
5/16X24 |
|
|
78-95 |
M10X1,50 |
|
|
M8X1,25 |
|
|
96-99 |
M10X1,50 |
M10X1,50 |
|
M8X1,25 |
|
|
00-07 |
M10X1,50 |
M10X1,50 |
|
|
|
Monza |
75-80 |
3/8X24 |
|
|
3/8X24 |
|
Nova, Chevy II, Concours |
64-66 |
|
|
5/16X24 |
5/16X24 |
|
|
67-68 |
3/8X24 |
|
5/16X24 |
5/16X24 |
|
|
69-79 |
3/8X24 |
|
|
5/16X24 |
| w/2 BBL Carb. |
85-88 |
M7X1,00 |
|
|
M7X1,00 |
| w/F.I. Twin Cam |
88 |
M7X1,00 |
M7X1,00 |
|
|
|
P10, 1500 Series |
71-73 |
3/8X24 |
|
|
3/8X24 |
|
|
74-75 |
3/8X24 |
|
|
5/16X24 |
|
|
76-81 |
M10X1,50 |
|
|
M8X1,25 |
|
P20, 2500 Series |
71-73 |
3/8X24 |
|
|
3/8X24L |
|
|
74-75 |
3/8X24 |
|
|
3/8X24 |
| w/2.5" Shoe |
76-78 |
3/8X24 |
|
|
3/8X24 |
| w/2.75" Shoe |
76-78 |
3/8X24 |
|
|
5/16X24 |
|
|
79-89 |
M10X1,50 |
|
|
M8X1,25 |
|
P30, 3500 Series |
71-75 |
3/8X24 |
|
|
3/8X24 |
|
|
76-89 |
M10X1,50 |
|
|
M8X1,25 |
|
Postal Service Van |
87-95 |
M10X1,50 |
|
|
M8X1,25 |
|
R10, 1500 Pickup |
87-91 |
M10X1,50 |
|
|
M8X1,25 |
|
R20, 2500 Pickup |
87-91 |
M10X1,50 |
|
|
M8X1,25 |
|
R30, 3500 Pickup |
87-91 |
M10X1,50 |
|
|
M8X1,25 |
|
S10, Blazer |
82-96 |
M10X1,50 |
|
|
M8X1,25 |
|
|
97-03 |
M10X1,50 |
M10X1,00 |
|
M8X1,25 |
|
|
04-05 |
M10X1,50 |
M10X1,00 |
|
|
|
S15, Jimmy, Sonoma |
82-96 |
M10X1,50 |
|
|
M8X1,25 |
|
|
97-03 |
M10X1,50 |
M10X1,00 |
|
M8X1,25 |
|
|
04-05 |
M10X1,50 |
M10X1,00 |
|
|
|
Sierra C3, Sierra Denali |
01-03 |
M10X1,50 |
M10X1,00 |
|
|
|
|
04 |
M10X1,50 |
M10X1,50 |
|
|
|
|
06-08 |
M10X1,50 |
M10X1,00 |
|
|
|
Silverado SS |
03-06 |
M10X1,50 |
M10X1,00 |
|
|
|
Silverado, Sierra 1500 |
99-00 |
M10X1,50 |
M10X1,00 |
|
|
| w/ 4 dr |
01-02 |
M10X1,50 |
M10X1,50 |
|
|
| wo/ 4 dr |
01-02 |
M10X1,50 |
M10X1,00 |
|
|
|
|
03 |
M10X1,50 |
M10X1,00 |
|
|
| HD |
03 |
M10X1,50 |
M10X1,50 |
|
|
|
|
04 |
M10X1,50 |
M10X1,00 |
|
|
|
|
05-07 |
M10X1,50 |
M10X1,00 |
|
|
| HD |
05-07 |
M10X1,50 |
M10X1,50 |
|
|
|
|
08 |
M10X1,50 |
M10X1,50 |
|
|
|
Silverado, Sierra 2500 |
99-08 |
M10X1,50 |
M10X1,50 |
|
|
|
Silverado, Sierra 3500 |
99-08 |
M10X1,50 |
M10X1,50 |
|
|
|
SSR |
04-06 |
M10X1,00S |
M10X1,00S |
|
|
|
Suburban |
73 |
3/8X24 |
|
|
3/8X24 |
|
|
74-75 |
3/8X24 |
|
|
3/8X24 |
| 13" rear drum |
74-75 |
3/8X24 |
|
|
5/16X24 |
|
|
76-78 |
3/8X24 |
|
|
5/16X24 |
|
|
79-99 |
M10X1,50 |
|
|
M8X1,25 |
|
|
00-07 |
M10X1,50 |
M10X1,00 |
|
|
| 2500 |
00-07 |
M10X1,50 |
M10X1,50 |
|
|
|
|
08 |
M10X1,50 |
M10X1,50 |
|
|
|
Tahoe, Yukon, Denali |
92-98 |
M10X1,50 |
|
|
M8X1,25 |
| 10" Brk. |
99 |
M10X1,50 |
|
|
M10X1,50 |
| 11" & 13" Brk. |
99 |
M10X1,50 |
|
|
M8X1,25 |
|
|
00-12 |
M10X1,50 |
M10X1,00 |
|
|
|
Trailblazer, Envoy |
02-08 |
M10X1,00S |
M10X1,00S |
|
|
|
Uplander |
05-08 |
M10X1,50 |
M10X1,00 |
|
|
|
V10, 1500 4WD Pickup |
89-91 |
M10X1,50 |
|
|
M8X1,25 |
|
V20, 2500 4WD Pickup |
87-91 |
M10X1,50 |
|
|
M8X1,25 |
|
V30, 3500 4WD Pickup |
87-91 |
M10X1,50 |
|
|
M8X1,25 |
|
Venture Van |
97-01 |
M10X1,50 |
|
|
M8X1,25 |
|
|
02-04 |
M10X1,50 |
M10X1,50 |
|
|
|
|
|||||
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Astro/Safari (4wd) |
85-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Blazer/Jimmy (full) |
71-73 |
3/8X24 |
- |
- |
3/8X24 |
|
Blazer/Jimmy (full) |
74-78 |
3/8X24 |
- |
- |
5/16X24 |
|
Blazer/Jimmy (full) |
79-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
S Series Blazer/PU |
82-96 |
M10X1,50 |
- |
- |
M8X1,25 |
|
C10 Series PU |
64-73 |
3/8X24 |
- |
- |
3/8X24 |
|
C10 Series PU |
74-77 |
3/8X24 |
- |
- |
5/16X24 |
|
C10 Series PU |
78-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
20 Series PU |
65-78 |
3/8X24 |
- |
- |
3/8X24 |
|
20 Series PU |
79-97 |
M10X1,50 |
- |
- |
M8X1,25 |
| PU/Suburban |
71-78 |
3/8X24 |
- |
- |
3/8X24 |
|
G10 Series/Van30 Series |
72-77 |
3/8X24 |
- |
- |
5/16X24 |
|
G10 Series/Van |
78-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
G10 Series/Van |
76-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
G30 Series/Van |
71-78 |
3/8X24 |
- |
- |
3/8X24 |
|
El Camino |
65-69 |
5/16X24 |
- |
- |
5/16X24 |
|
El Camino |
70-77 |
3/8X24 |
- |
- |
5/16X24 |
|
El Camino |
78-88 |
M10X1,50 |
- |
- |
M8X1,25 |
|
C/K 1500, 2500,3500 |
88-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Pickup |
88-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Suburban |
88-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Tahoe (New Body) |
88-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Venture |
97-98 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Cirrus |
95-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Concord |
93-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Cordoba |
75-81 |
3/8X24 |
- |
- |
5/16X24 |
|
E Class |
83-84 |
3/8X24 |
- |
- |
5/16X24 |
|
Executive Sedan |
89-93 |
3/8X24 |
- |
- |
5/16X24 |
|
Fifth Avenue |
65-93 |
3/8X24 |
- |
- |
5/16X24 |
|
Laser |
78-95 |
3/8X24 |
- |
- |
5/16X24 |
|
LeBaron |
94-97 |
3/8X24 |
- |
- |
5/16X24 |
|
LHS |
95-97 |
3/8X24 |
3/8X24 |
- |
- |
|
Sebring |
95-97 |
M10X1,00 |
M10X1,00 |
- |
M10X1,00 |
|
Maserati |
89-91 |
3/8X24 |
3/8X24 |
- |
- |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
2000 GTX |
89-92 |
M10X1,00 |
M10X1,00 |
- |
M7X1,00 |
|
600 |
83-88 |
3/8X24 |
5/16X24 |
- |
- |
|
Aspen |
76-80 |
3/8X24 |
- |
- |
5/16X24 |
|
Avenger |
95-96 |
M10X1,00 |
M10X1,00 |
- |
M10X1,00 |
|
Challenger |
70-74 |
3/8X24 |
- |
- |
5/16X24 |
|
Challenger |
75-83 |
M10X1,00 |
- |
- |
M7X1,00 |
|
Charger |
66-69 |
5/16X24 |
- |
- |
5/16X24 |
|
Charger |
70-77 |
3/8X24 |
- |
- |
5/16X24 |
|
Charger |
78-90 |
3/8X24 |
- |
- |
5/16X24 |
|
Colt GTS |
71-84 |
M10X1,00 |
- |
- |
M10X1,00 |
|
Colt GTS |
85-90 |
M7X1,00 |
- |
- |
M10X1,00 |
|
Colt LC |
91 |
M7X1,00 |
- |
- |
M7X1,00 |
|
Colt LA |
91 |
M7X1,00 |
- |
- |
M10X1,00 |
|
Colt |
92-97 |
M7X1,00 |
M7X1,00 |
- |
M7X1,00 |
|
Super Bee |
65-69 |
5/16X24 |
- |
- |
5/16X24 |
|
Super Bee |
69-76 |
3/8X24 |
- |
- |
5/16X24 |
|
Dart |
70 |
3/8X24 |
- |
- |
5/16X24 |
|
Demon |
70 |
3/8X24 |
- |
- |
5/16X24 |
|
Swinger |
70 |
3/8X24 |
- |
- |
5/16X24 |
|
Daytona |
84-94 |
3/8X24 |
3/8X24 |
- |
5/16X24 3/8X24 |
|
Shelby Z |
84-94 |
3/8X24 |
3/8X24 |
- |
5/16X24 3/8X24 |
|
Turbo Z |
84-94 |
3/8X24 |
- |
- |
5/16X24 |
|
Diplomat |
77-89 |
3/8X24 |
- |
- |
5/16X24 |
|
Mirada |
77-89 |
3/8X24 |
- |
- |
5/16X24 |
|
Dynasty |
88-93 |
3/8X24 |
- |
- |
5/16X24 |
|
Intrepid |
93-97 |
3/8X24 |
3/8X24 |
- |
5/16X24 |
|
Lancer |
85-89 |
3/8X24 |
- |
- |
5/16X24 |
|
Magnum XE |
78-79 |
3/8X24 |
- |
- |
5/16X24 |
|
Monaco |
63-69 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Polara |
63-69 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Royal Monaco |
63-69 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
St. Regis |
70-84 |
3/8X24 |
- |
- |
5/16X24 |
|
St. Regis |
90 |
M10X1,00 |
M10X1,00 |
- |
5/16X24 |
|
St. Regis |
91-92 |
3/8X24 |
M10X1,00 |
- |
3/8X24 |
|
Neon |
95-99 |
3/8X24 |
3/8X24 |
- |
5/16X24 |
|
Neon |
00-03 |
M10X1,00 |
M10X1,00 |
- |
M10X1,00 |
|
Neon RT w/ABS SRT-4 |
04-05 |
M10X1,00S |
M10X1,00 |
- |
- |
|
Neon RT wo/ABS SE Series, SXT |
04-05 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Omni |
78-90 |
3/8X24 |
- |
- |
5/16X24 |
|
024 |
78-90 |
3/8X24 |
- |
- |
5/16X24 |
|
Shadow |
87-94 |
3/8X24 |
- |
- |
5/16X24 |
|
Stealth (4WD) |
92-96 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Stealth (AWD) |
92-96 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Stealth (4WD) |
91 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Stratus |
95-97 |
3/8X24 |
3/8X24 |
- |
5/16X24 |
|
Viper |
92-97 |
M10X1,00S |
M10X1,00S |
- |
- |
|
RAM 1500 |
94-99 |
M10X1,50 |
- |
- |
M8X1,25 |
|
RAM 1500 |
00-01 |
3/8X24 |
- |
- |
3/8X24 |
|
RAM 1500 |
02-05 |
3/8X24 |
M10X1,00 |
- |
- |
|
RAM1500 SRT-10 |
04-05 |
3/8X24 |
M10X1,00 |
- |
- |
|
RAM 2500 |
94-99 |
M10X1,50 |
- |
- |
M8X1,25 |
|
RAM 2500 |
00 |
3/8X24 |
- |
- |
3/8X24 |
|
RAM 2500 |
01 |
3/8X24 |
3/8X24 |
- |
3/8X24 |
|
RAM 2500 |
02-05 |
3/8X24 |
3/8X24 |
- |
- |
|
RAM 3500 |
94-99 |
M10X1,50 |
- |
- |
M8X1,25 |
|
RAM 3500 |
00 |
3/8X24 |
- |
- |
3/8X24 |
|
RAM 3500 |
01 |
3/8X24 |
3/8X24 |
- |
3/8X24 |
|
RAM 3500 |
02 |
3/8X24 |
3/8X24 |
- |
- |
|
RAM 3500 |
03-05 |
M10X1,00 |
3/8X24 |
- |
- |
|
Van 1 Ton |
73-97 |
3/8X24 |
- |
- |
3/8X24 |
|
Van 1/2 Ton |
70-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Van 3/4 Ton |
71-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Caravan |
84-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Mini RAM |
84-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Royal Monaco |
84-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Grand Caravan |
84-97 |
3/8X24 |
- |
- |
5/16X24 |
|
1/2 Ton Pickup |
61-65 |
3/8X24 |
- |
3/8X24 |
- |
|
1/2 Ton Pickup |
65-93 |
3/8X24 |
- |
- |
5/16X24 |
|
3/4 Ton Pickup |
65-71 |
3/8X24 |
- |
- |
3/8X24 |
|
3/4 Ton Pickup |
72 |
3/8X24 |
- |
- |
5/16X24 |
|
3/4 Ton Pickup |
73-93 |
3/8X24 |
- |
- |
3/8X24 |
| 1 Ton Pickup |
69-93 |
3/8X24 |
- |
- |
3/8X24 |
| D50 RAM Pickup |
79-94 |
M10X1,00 |
- |
- |
M7X1,00 |
| Dakota |
86-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
| Eagle |
87-88 |
3/8X24 |
- |
- |
3/8X24 |
|
Premier |
88-90 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Summit |
93-96 |
M7X1,00 |
- |
- |
M10X1,00 |
|
Talon |
90-94 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Vision |
93-94 |
3/8X24 |
3/8X24 |
- |
5/16X24 |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
| All Models |
- |
M8X1,25 |
M8X1,25 |
- |
M8X1,25 |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
Aerostar |
86-89 |
7/16X20 |
|
|
5/16X24 |
|
9" Brk |
90-92 |
7/16X20 |
|
|
5/16X24 |
|
10" Brk |
90-92 |
7/16X20 |
|
|
3/8X24 |
|
|
93-97 |
7/16X20 |
|
|
3/8X24 |
| Aspire |
94-97 |
M8X1,00 |
|
|
M8X1,00 |
|
Bronco |
67-75 |
|
|
3/8X24 |
3/8X24 |
|
|
76-79 |
3/8X24L |
|
|
3/8X24 |
|
|
80-96 |
7/16X20 |
|
|
3/8X24 |
|
Bronco II |
84-90 |
7/16X20 |
|
|
3/8X24 |
|
Contour To 5-26-99 |
95-99 |
M10X1,00 |
M10X1,00S |
|
M8X1,25 |
|
From 5-26-99 |
99 |
M8X1,25 |
M10X1,00S |
|
M8X1,25 |
|
|
00 |
M8X1,25 |
M10X1,00 |
|
|
|
Courier |
77-82 |
M7X1,00 |
|
|
- |
|
Crown Victoria, Country Squire, Custom 500, Galaxie |
65-67 |
|
|
3/8X24 |
3/8X24 |
|
|
68-71 |
3/8X24L |
|
3/8X24 |
3/8X24 |
|
|
73-78 |
3/8X24 |
3/8X24 |
|
3/8X24 |
|
|
79-91 |
3/8X24 |
|
|
3/8X24 |
|
|
92-02 |
3/8X24 |
3/8X24 |
|
|
|
|
03-08 |
M10X1,00S |
M10X1,00S |
|
|
|
E Series Super Duty |
96-02 |
3/8X24 |
3/8X24 |
|
|
|
E100, 150 Series 1/2 T. Van |
64-74 |
|
|
3/8X24 |
3/8X24 |
|
|
75-80 |
3/8X24L |
|
|
3/8X24 |
|
|
81-83 |
3/8X24 |
|
|
3/8X24 |
|
|
84-93 |
7/16X20 |
|
|
3/8X24 |
|
|
94-03 |
3/8X24 |
|
|
3/8X24 |
|
|
04-07 |
3/8X24 |
3/8X24 |
|
|
|
|
08 |
3/8X24 |
M10X1,00 |
|
|
|
E200, 250 Series 3/4 T. Van |
69-74 |
|
|
3/8X24 |
3/8X24 |
|
|
75-98 |
3/8X24 |
|
|
3/8X24 |
|
|
99-07 |
3/8X24 |
3/8X24 |
|
|
|
|
08 |
3/8X24 |
M10X1,00 |
|
|
|
E300, 350 Series 1 T. Van |
|
|
|
|
|
|
w/7/8" wc Bore |
69-74 |
|
|
3/8X24 |
1/4X28 |
|
w/1 1/6" wc Bore |
69-74 |
|
|
3/8X24 |
3/8X24 |
|
|
75-98 |
3/8X24 |
|
|
3/8X24 |
|
|
99-02 |
3/8X24 |
3/8X24 |
|
3/8X24 |
|
|
03-07 |
3/8X24 |
3/8X24 |
|
|
|
|
08 |
3/8X24 |
M10X1,00 |
|
|
|
E450 Series Van |
03-07 |
3/8X24 |
3/8X24 |
|
|
|
|
08 |
3/8X24 |
- |
|
|
|
Edge |
07-08 |
M8X1,00 |
M10X1,00 |
|
|
|
Escape |
01-04 |
3/8X24 |
|
|
M7X1,00 |
|
|
05-08 |
3/8X24 |
3/8X24 |
|
|
|
Escort |
83-90 |
3/8X24 |
|
|
3/8X24 |
|
|
91-92 |
M8X1,00 |
M8X1,00 |
|
M8X1,00 |
|
|
93-98 |
M8X1,00 |
M7X1,00 |
|
M8X1,00 |
|
Escort ZX2 |
97-03 |
M8X1,00 |
M7X1,00 |
|
|
|
Excursion |
00-05 |
M10X1,00 |
M10X1,00 |
|
|
|
Expedition |
97-08 |
3/8X24 |
3/8X24 |
|
|
|
EXP |
82-89 |
3/8X24 |
|
|
3/8X24 |
|
Explorer, Sport Trac Series |
91-94 |
3/8X24 |
|
|
3/8X24 |
|
|
95-05 |
3/8X24 |
3/8X24 |
|
|
|
|
06-08 |
M10X1,00 |
M10X1,00S |
|
|
|
F100, 150 Series 1/2 T. |
59-67 |
|
|
3/8X24 |
1/4X28 |
|
2WD, 4WD 68-71 |
68-72 |
|
|
3/8X24 |
1/4X28 |
|
4WD 72 |
68-72 |
|
|
5/16X24 |
1/4X28 |
|
w/ 15/16" wc Bore |
73-75 |
3/8X24 |
|
5/16X24 |
3/8X24 |
|
w/ 7/8" wc Bore |
73-75 |
3/8X24 |
|
5/16X24 |
1/4X28 |
|
|
76-79 |
3/8X24 |
|
|
3/8X24 |
|
F100 w/ Std. Power Brk |
80-83 |
3/8X24 |
|
|
3/8X24 |
|
w/ Manual Brk & HD Power Brk |
80-83 |
7/16X20 |
|
|
3/8X24 |
|
F150 |
80-85 |
7/16X20 |
|
|
3/8X24 |
|
|
86-96 |
3/8X24 |
|
|
3/8X24 |
|
|
97-03 |
3/8X24 |
3/8X24 |
|
3/8X24 |
|
|
04-08 |
M10X1,00S |
M10X1,00S |
|
|
|
F200, 250 Series 3/4 T. |
66-72 |
3/8X24L |
|
3/8X24 |
3/8X24 |
|
4WD |
67-75 |
|
|
3/8X24 |
3/8X24 |
|
|
73-79 |
3/8X24L |
|
|
3/8X24 |
|
w/ Dual Piston |
80-85 |
3/8X24L |
|
|
3/8X24 |
|
Single Piston |
80-85 |
7/16X20 |
|
|
3/8X24 |
|
|
86-94 |
3/8X24L |
|
|
3/8X24 |
|
|
95-98 |
3/8X24 |
|
|
3/8X24 |
|
|
99-07 |
3/8X24 |
3/8X24 |
|
|
|
|
08 |
3/8X24 |
M10X1,00 |
|
|
|
F300, 350 Series 1 T. |
57-66 |
|
|
3/8X24 |
3/8X24L |
|
|
67 |
|
|
3/8X24 |
3/8X24 |
|
|
68-72 |
3/8X24L |
|
3/8X24 |
3/8X24 |
|
|
73-94 |
3/8X24L |
|
|
3/8X24 |
|
|
95-97 |
3/8X24 |
|
|
3/8X24 |
|
|
98-04 |
M10X1,00 |
M10X1,00 |
|
|
|
|
05-08 |
3/8X24 |
3/8X24 |
|
|
|
F450, 550 Super Duty |
88-98 |
3/8X24 |
3/8X24 |
|
|
|
|
99-04 |
M10X1,00 |
M10X1,00 |
|
|
|
|
05-08 |
3/8X24 |
3/8X24 |
|
|
|
F53/59 Stripped Chassis |
89-98 |
3/8X24 |
3/8X24 |
|
|
|
|
99-02 |
M10X1,00 |
M10X1,00 |
|
|
|
Fairmont, Futura |
78-83 |
3/8X24 |
|
|
1/4X28 |
|
|
78-83 |
3/8X24 |
|
|
3/8X24 |
|
Falcon, Futura, Sprint |
65-66 |
|
|
1/4X28 |
3/8X24 |
|
|
67-70 |
|
|
1/4X28 |
1/4X28 |
|
|
67-70 |
3/8X24L |
|
1/4X28 |
3/8X24 |
|
Fiesta |
77-80 |
M10X1,00S |
|
|
M10X1,00S |
|
Five Hundred |
05-07 |
M10X1,50 |
M10X1,50 |
|
|
|
Focus |
00-04 |
M8X1,25 |
M7X1,00 |
|
M10X1,00S |
|
|
05-07 |
M8X1,25 |
M7X1,00 |
|
|
|
|
08 |
M10X1,00S |
- |
|
|
|
Fusion |
06-08 |
M8X1,00 |
M10X1,00 |
|
|
|
Freestar |
04-07 |
M10X1,00S |
M10X1,00S |
|
|
|
Freestyle |
05-07 |
M10X1,50 |
M10X1,00S |
|
|
|
Granada |
75-79 |
3/8X24 |
3/8X24 |
|
3/8X24 |
|
w/ 10" rear drum |
80-82 |
3/8X24 |
|
|
3/8X24 |
|
w/ 9" rear drum |
80-82 |
3/8X24 |
|
|
1/4X28 |
|
GT |
05-06 |
M10X1,00S |
M10X1,00S |
|
|
|
LTD |
65-67 |
|
|
3/8X24 |
3/8X24 |
|
|
68-72 |
3/8X24L |
|
3/8X24 |
3/8X24 |
|
|
73-78 |
3/8X24 |
3/8X24 |
|
3/8X24 |
|
|
79-91 |
3/8X24 |
|
|
3/8X24 |
|
|
92-97 |
3/8X24 |
3/8X24 |
|
|
|
Maverick |
70-75 |
3/8X24 |
|
1/4X28 |
1/4X28 |
|
Maverick |
76-77 |
3/8X24 |
|
|
3/8X24 |
|
Mustang |
94-98 |
3/8X24 |
3/8X24 |
|
|
|
Cobra |
94-98 |
M10X1,00S |
M10X1,00S |
|
|
|
Mustang, GT |
99-00 |
M10X1,00 |
M10X1,00S |
|
|
|
Cobra |
99-00 |
M10X1,00S |
M10X1,00S |
|
|
|
Mustang, GT, GT Bullitt |
01 |
M10X1,00 |
M10X1,00S |
|
|
|
Cobra |
01 |
M10X1,00S |
M10X1,00S |
|
|
|
Mustang, GT |
02 |
M10X1,00 |
M10X1,00S |
|
|
|
Mustang, GT |
03-04 |
M10X1,00 |
M10X1,00S |
|
|
|
Cobra, Mach 1 |
03-04 |
M10X1,00S |
M10X1,00S |
|
|
|
|
05-12 |
M10X1,00S |
M10X1,00S |
|
|
|
Mustang, Mustang II, SVO |
65-67 |
|
|
1/4X28 |
1/4X28 |
|
8 cyl |
68-69 |
3/8X24L |
|
1/4X28 |
1/4X28 |
|
6 cyl |
65-70 |
|
|
1/4X28 |
1/4X28 |
|
|
70-71 |
3/8X24L |
|
1/4X28 |
1/4X28 |
|
|
72-73 |
3/8X24L |
|
3/8X24 |
3/8X24 |
|
|
74-86 |
3/8X24 |
|
|
1/4X28 |
|
SVO |
84-86 |
3/8X24 |
3/8X24 |
|
|
|
w/ 9" Brk |
87-90 |
3/8X24 |
|
|
1/4X28 |
|
w/ 10" Brk |
87-90 |
3/8X24 |
|
|
3/8X24 |
|
|
91-92 |
3/8X24 |
|
|
1/4X28 |
|
|
93 |
3/8X24 |
3/8X24 |
|
1/4X28 |
|
Pinto |
71-73 |
3/8X24 |
|
1/4X28 |
1/4X28 |
|
|
74-80 |
3/8X24 |
|
|
1/4X28 |
|
Probe |
89-97 |
M7X1,00 |
M7X1,00 |
|
M8X1,00 |
|
Ranchero |
70-71 |
3/8X24L |
|
1/4X28 |
3/8X24 |
|
|
72-79 |
3/8X24 |
|
|
3/8X24 |
|
Ranger |
83 |
7/16X20 |
|
|
1/4X28 |
|
w/ 9" Brk |
87-89 |
7/16X20 |
|
|
1/4X28 |
|
w/ 10" Brk |
87-89 |
7/16X20 |
|
|
3/8X24 |
|
w/ 9" Brk |
90-02 |
3/8X24 |
|
|
1/4X28 |
|
w/ 10" Brk |
90-02 |
3/8X24 |
|
|
3/8X24 |
|
w/ 9" Brk |
03-04 |
3/8X24 |
3/8X24 |
|
3/8X24 |
|
w/ 10" Brk |
03-04 |
3/8X24 |
3/8X24 |
|
5/16X24 |
|
|
05-08 |
3/8X24 |
|
|
5/16X24 |
|
Taurus |
86-88 |
M10X1,00S |
|
|
M10X1,00S |
|
|
89-99 |
M10X1,00S |
M10X1,00S |
|
M10X1,00S |
|
|
00-07 |
M10X1,00S |
M10X1,00S |
|
M10X1,00 |
|
|
08 |
M10X1,50 |
M10X1,50 |
|
|
|
Tempo |
84-97 |
3/8X24 |
|
|
3/8X24 |
|
Thunderbird |
68-71 |
3/8X24L |
|
|
3/8X24 |
|
|
72-76 |
3/8X24 |
3/8X24 |
|
3/8X24 |
|
|
77-79 |
3/8X24 |
|
|
3/8X24 |
|
w/ 9" Brk |
80-82 |
3/8X24 |
|
|
5/16X24 |
|
w/ 10" Brk |
80-82 |
3/8X24 |
|
|
3/8X24 |
|
w/ 9" Brk |
83-88 |
3/8X24 |
|
|
1/4X28 |
|
w/ 10" Brk |
83-88 |
3/8X24 |
|
|
3/8X24 |
|
Turbo Coupe |
87-88 |
3/8X24 |
M10X1,00S |
|
|
|
|
89-97 |
3/8X24 |
M10X1,00S |
|
M10X1,00S |
|
|
02-05 |
M10X1,00S |
M10X1,00S |
|
|
|
Windstar |
95-03 |
M10X1,00S |
3/8X24 |
|
3/8X24 |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Metro |
89-97 |
M10X1,00 |
- |
- |
M8X1,25 |
|
Metro Turbo |
89-94 |
M10X1,00 |
- |
- |
M8X1,25 |
|
Prizm |
89-97 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Tracker |
89-97 |
M10X1,00 |
- |
- |
M10X1,00 |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
Cherokee |
74-77 |
3/8X24 |
|
5/16X24 |
5/16X24 |
|
|
76-89 |
3/8X24 |
|
|
5/16X24 |
|
9" rear drum |
90-98 |
3/8X24 |
|
|
1/4X28 |
|
10" rear drum |
90-98 |
3/8X24 |
|
|
3/8X24 |
|
9" rear drum |
99-01 |
3/8X24 |
|
|
5/16X24 |
|
10" rear drum |
99-01 |
3/8X24 |
|
|
3/8X24 |
|
CJ, DJ |
67-71 |
|
|
1/4X28 |
1/4X28 |
|
|
72-75 |
|
|
3/8X24 |
3/8X24 |
|
|
76-78 |
3/8X24 |
|
3/8X24 |
1/4X28 |
|
|
79-80 |
3/8X24 |
|
|
3/8X24 |
|
|
81-89 |
3/8X24 |
|
|
1/4X28 |
|
|
90-95 |
3/8X24 |
|
|
5/16X24 |
|
|
97-98 |
3/8X24 |
|
|
1/4X28 |
|
Comanche Pickup |
86-89 |
3/8X24 |
|
|
1/4X28 |
|
9" rear drum |
90-93 |
3/8X24 |
|
|
1/4X28 |
|
10" rear drum |
90-93 |
3/8X24 |
|
|
3/8X24 |
| Commander |
06-08 |
M10X1,00S |
M10X1,00S |
|
|
| Compass |
07-08 |
M7X1,00 |
M7X1,00 |
|
|
| Grand Cherokee |
92-93 |
3/8X24 |
|
|
3/8X24 |
|
|
94 |
3/8X24 |
3/8X24 |
|
3/8X24 |
|
|
95-96 |
3/8X24 |
3/8X24 |
|
|
|
|
97-98 |
3/8X24 |
3/8X24HD |
|
|
|
o.e. caliper replacement |
99-02 |
M10X1,00 |
|
|
3/8X24 |
|
w/o o.e. caliper replacement |
99-02 |
3/8X24 |
|
|
3/8X24 |
|
|
03-04 |
M10X1,00 |
3/8X24 |
|
|
|
|
05-08 |
M10X1,00S |
M10X1,00S |
|
|
| Grand Wagoneer |
84-91 |
3/8X24 |
|
|
5/16X24 |
| J10, Gladiator |
65-73 |
|
|
3/8X24 |
3/8X24 |
|
|
74-76 |
3/8X24 |
3/8X24 |
|
5/16X24 |
|
|
77-88 |
3/8X24 |
|
|
5/16X24 |
| J20, Gladiator |
65-73 |
|
|
3/8X24 |
3/8X24 |
|
|
74-88 |
3/8X24 |
|
|
5/16X24 |
|
Liberty |
02 |
3/8X24 |
|
|
- |
|
|
03-07 |
3/8X24 |
3/8X24 |
|
|
|
|
08 |
M10X1,00S |
- |
|
|
|
Patriot |
07-08 |
M7X1,00 |
M7X1,00 |
|
|
|
Scrambler |
81-85 |
3/8X24 |
|
|
1/4X28 |
|
Wagoneer |
74-76 |
3/8X24 |
5/16X24 |
|
5/16X24 |
|
|
77-90 |
3/8X24 |
|
|
5/16X24 |
|
Wrangler |
67-71 |
|
|
1/4X28 |
1/4X28 |
|
|
72-75 |
|
|
3/8X24 |
3/8X24 |
|
|
76-78 |
3/8X24 |
|
3/8X24 |
1/4X28 |
|
|
79-80 |
3/8X24 |
|
|
3/8X24 |
|
|
81-89 |
3/8X24 |
|
|
1/4X28 |
|
|
90-02 |
3/8X24 |
|
|
5/16X24 |
|
|
03-05 |
3/8X24 |
3/8X24 |
|
5/16X24 |
|
|
06 |
3/8X24 |
3/8X24 |
|
|
|
|
07-10 |
M10X1,00S |
M10X1,00S |
|
|
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Town Car |
65-90 |
3/8X24 |
3/8X24 |
- |
3/8X24 |
|
Town Car |
91-94 |
3/8X24 |
M10X1,00 |
- |
- |
|
Town Car |
95-97 |
3/8X24 |
3/8X24 |
- |
- |
|
Lincoln |
65-90 |
3/8X24 |
3/8X24 |
- |
3/8X24 |
|
Continental |
65-87 |
3/8X24 |
3/8X24 |
- |
3/8X24 |
|
Continental |
88-95 |
M10X1,00 |
3/8X24 |
- |
- |
|
Continental |
96-97 |
M10X1,00 |
3/8X24 |
- |
- |
|
Varsailles |
77-80 |
3/8X24 |
3/8X24 |
- |
- |
|
Mark III-VIII |
68-89 |
3/8X24 |
3/8X24 |
- |
3/8X24 |
|
Mark III-VIII |
93-97 |
M10X1,00 |
3/8X24 |
- |
- |
|
Mark III-VIII |
90-92 |
3/8X24 |
M10X1,00 |
- |
- |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
190 |
84-92 |
M8X1,25L |
M8X1,25L |
- |
- |
|
260E |
87-89 |
M8X1,25L |
M8X1,25L |
|
|
|
300CD, 300CD Turbo Diesel |
78-85 |
M8X1,25L |
M8X1,25L |
|
|
|
300CE |
88-93 |
M8X1,25L |
M8X1,25L |
|
|
|
300D 2.5 Turbo Diesel |
90-93 |
M8X1,25L |
M8X1,25L |
|
|
|
300D Turbo Diesel |
86-87 |
M8X1,25L |
M8X1,25L |
|
|
|
300E, 300E 2.6, 300E 2.8, 300E 4-matic |
86-93 |
M8X1,25L |
M8X1,25L |
|
|
|
300SD Turbo Diesel |
81-85 |
M8X1,25L |
M8X1,25L |
|
|
|
300SD Turbo Diesel |
92-93 |
M8X1,25L |
M8X1,25L |
|
|
|
300SDL Turbo Diesel |
86-89 |
M8X1,25L |
M8X1,25L |
|
|
|
300SE 3.2 |
92-93 |
M8X1,25L |
M8X1,25L |
|
|
|
300SE, 300SEL |
88-93 |
M8X1,25L |
M8X1,25L |
|
|
|
300SL |
90-93 |
M8X1,25L |
M8X1,25L |
|
|
|
300TD, 300TD Turbo Diesel |
80-85 |
M8X1,25L |
M8X1,25L |
|
|
|
300TD, 300TD Turbo Diesel |
87 |
M8X1,25L |
M8X1,25L |
|
|
|
300TE. 300TE 4-matic |
88-93 |
M8X1,25L |
M8X1,25L |
|
|
|
350SD, 350SDL Turbo Diesel |
90-91 |
M8X1,25L |
M8X1,25L |
|
|
|
380SE, 380SEL |
81-85 |
M8X1,25L |
M8X1,25L |
|
|
|
380SEC |
82-83 |
M8X1,25L |
M8X1,25L |
|
|
|
380SL, 380SLC |
80-85 |
M8X1,25L |
M8X1,25L |
|
|
|
400E, 400SE, 400SEL |
92-93 |
M8X1,25L |
M8X1,25L |
|
|
|
420SEL |
86-92 |
M8X1,25L |
M8X1,25L |
|
|
|
500E |
92-93 |
M8X1,25L |
M8X1,25L |
|
|
|
500SEC |
84-85 |
M8X1,25L |
M8X1,25L |
|
|
|
500SEC |
93 |
M8X1,25L |
M8X1,25L |
|
|
|
500SEL |
84-85 |
M8X1,25L |
M8X1,25L |
|
|
|
500SL |
90-93 |
M8X1,25L |
M8X1,25L |
|
|
|
560 |
86-91 |
M8X1,25L |
M8X1,25L |
|
|
|
600SEC, 600SEL |
92-93 |
M8X1,25L |
M8X1,25L |
|
|
|
600SL |
93 |
M8X1,25L |
M8X1,25L |
|
|
|
C32 AMG |
02-03 |
- |
M8X1,25 |
|
|
|
|
04 |
- |
M8X1,25L |
|
|
|
C36 |
96-97 |
M8X1,25L |
M8X1,25L |
|
|
|
C55 AMG |
05-06 |
M8X1,25L |
M8X1,25L |
|
|
|
C63 AMG |
08-10 |
M10X1,00S Q(2) per caliper |
M10X1,00S |
|
|
|
C220 |
94-96 |
M8X1,25L |
M8X1,25L |
|
|
|
C230 |
97-06 |
M8X1,25L |
M8X1,25L |
|
|
|
C240 |
02-05 |
M8X1,25L |
M8X1,25L |
|
|
|
C250 |
95 |
M8X1,25L |
M8X1,25L |
|
|
|
C280 |
94-98 |
M8X1,25L |
M8X1,25L |
|
|
|
|
06-07 |
M8X1,25L |
M8X1,25L |
|
|
|
C300 |
08-11 |
M10X1,00S |
M10X1,00 |
|
|
|
C320 |
02-05 |
M8X1,25L |
M8X1,25L |
|
|
|
C350 |
06-07 |
M8X1,25L |
M8X1,25 |
|
|
|
|
|
|
|
|
|
|
CL63 AMG, CL65 AMG |
08-11 |
M10X1,00S |
M10X1,00 |
|
|
|
CL500 |
05-06 |
M8X1,25L |
M8X1,25 |
|
|
|
CL550 |
07-11 |
M8X1,25 |
M8X1,25L |
|
|
|
CL600 |
06-11 |
M8X1,25 |
M8X1,25L |
|
|
|
CLK55 AMG |
03-04 |
- |
M8X1,25L |
|
|
|
CLK320 |
02-05 |
M8X1,25L |
M8X1,25L |
|
|
|
CLK350 |
06-08 |
M8X1,25L |
M8X1,25L |
|
|
|
CLK500 |
03-05 |
- |
M8X1,25L |
|
|
|
|
06 |
M8X1,25L |
M8X1,25 |
|
|
|
CLS63 AMG |
07-11 |
M10X1,00S |
- |
|
|
|
CLS550 |
07-11 |
M8X1,25 |
M8X1,25L |
|
|
|
E55 AMG |
02 |
- |
M8X1,25L |
|
|
|
|
04-06 |
- |
M10X1,00 |
|
|
|
E63 AMG |
07-11 |
M10X1,00S |
M10X1,00S |
|
|
|
E320 |
94-99 |
M8X1,25L |
M8X1,25L |
|
|
|
|
01 |
M8X1,25 |
M8X1,25L |
|
|
|
|
03-04 |
M8X1,25 |
M8X1,25L |
|
|
|
|
05-09 |
M10X1,00S |
M8X1,25L |
|
|
|
E420 |
94-97 |
M8X1,25L |
M8X1,25L |
|
|
|
E430 |
98-99 |
M8X1,25L |
M8X1,25L |
|
|
|
E500 |
94 |
M8X1,25L |
M8X1,25L |
|
|
|
E550 |
07-09 |
M10X1,00S |
M8X1,25L |
|
|
|
|
10-11 |
M8X1,25L |
M10X1,00 |
|
|
|
G55 AMG |
11 |
M10X1,00 |
M8X1,25L |
|
|
|
G500 |
06 |
M8X1,25L |
M8X1,25 |
|
|
|
G550 |
11 |
M8X1,25L |
- |
|
|
|
GL320 |
07-09 |
M8X1,25L |
M8X1,25L |
|
|
|
GL450 |
07-08 |
M8X1,25L |
M8X1,25L |
|
|
|
|
09-11 |
M10X1,00 |
M8X1,25L |
|
|
|
GL550 |
08-11 |
M10X1,00 |
M8X1,25L |
|
|
|
GLK350 |
10-11 |
M10X1,00S |
M10X1,00 |
|
|
|
ML63 AMG |
07-11 |
M10X1,00 |
M10X1,00 |
|
|
|
ML320, ML350, ML430 |
98-05 |
M8X1,25L |
M8X1,25L |
|
|
|
ML320 |
07 |
M8X1,25L |
M8X1,25L |
|
|
|
ML350 |
06-07 |
M8X1,25L |
M8X1,25 |
|
|
|
|
09-11 |
M10X1,00 |
M8X1,25L |
|
|
|
ML450 |
10-11 |
M10X1,00 |
M8X1,25L |
|
|
|
ML500 |
06-07 |
M8X1,25L |
M8X1,25 |
|
|
|
ML550 |
09-10 |
M10X1,00 |
M8X1,25L |
|
|
|
R320 |
07-09 |
M8X1,25L |
M8X1,25L |
|
|
|
R350 |
08-11 |
M10X1,00 |
M8X1,25L |
|
|
|
R500 |
07 |
M8X1,25L |
M8X1,25 |
|
|
|
S63 AMG |
08-11 |
M10X1,00S |
M10X1,00 |
|
|
|
S65 AMG |
06-11 |
M10X1,00S |
M10X1,00 |
|
|
|
S320 |
94 |
M8X1,25L |
M8X1,25L |
|
|
|
S350 Turbo Diesel |
94 |
M8X1,25L |
M8X1,25L |
|
|
|
S350 |
06 |
M8X1,25L |
M8X1,25L |
|
|
|
S400 |
10-11 |
M8X1,25 |
M8X1,25L |
|
|
|
S420 |
94 |
M8X1,25L |
M8X1,25L |
|
|
|
S430 |
05-06 |
M8X1,25L |
M8X1,25 |
|
|
|
S55 AMG |
03-06 |
- |
M10X1,00 |
|
|
|
S500 |
94-99 |
M8X1,25L |
M8X1,25L |
|
|
|
|
05 |
M8X1,25L |
M8X1,25 |
|
|
|
S550 |
07-11 |
M8X1,25 |
M8X1,25L |
|
|
|
S600 |
94-99 |
M8X1,25L |
M8X1,25L |
|
|
|
|
03-06 |
- |
M10X1,00 |
|
|
|
|
07-11 |
M8X1,25 |
M8X1,25L |
|
|
|
SL55 AMG |
03-07 |
- |
M10X1,00 |
|
|
|
SL320, SL500, SL600 |
94 |
M8X1,25L |
M8X1,25L |
|
|
|
SL500 |
03-05 |
M8X1,25L |
- |
|
|
|
SL550 |
07-11 |
M8X1,25 |
M8X1,25L |
|
|
|
SL600 |
04-09 |
- |
M10X1,00 |
|
|
|
SLK55 AMG |
08-10 |
- |
M8X1,25L |
|
|
|
SLK230 |
98-04 |
M8X1,25 |
M8X1,25L |
|
|
|
SLK280 |
06-08 |
M8X1,25L |
M8X1,25 |
|
|
|
SLK300 |
09-11 |
M8X1,25L |
M8X1,25L |
|
|
|
SLK320 |
01-04 |
M8X1,25 |
M8X1,25L |
|
|
|
SLK330 |
01-03 |
M8X1,25L |
M8X1,25L |
|
|
|
Sprinter 2500 |
10-11 |
- |
M10X1,00 |
|
|
|
Sprinter 3500 |
10-11 |
M10X1,00 |
M10X1,00 |
|
|
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Capri |
71-77 |
M10X1,00S |
- |
- |
- |
|
Capri |
78-79 |
3/8X24 |
- |
- |
5/16X24 |
|
Capri |
80-88 |
3/8X24 |
- |
- |
1/4X28 |
|
Cougar |
67-73 |
3/8X24 |
- |
1/4X28 |
1/4X28 |
|
Cougar |
74-88 |
3/8X24 |
- |
- |
3/8X24 |
|
Cougar |
89-91 |
M10X1,00 |
M10X1,00 |
- |
1/4X28 |
|
Cougar |
92-97 |
3/8X24 |
M10X1,00 |
- |
M10X1,00 |
|
Marquis |
65-97 |
3/8X24 |
3/8X24 |
- |
3/8X24 |
|
Milan |
06-08 |
M8X1,00 |
M10X1,00 |
|
|
|
Mountaineer |
96-97 |
3/8X24 |
3/8X24 |
- |
3/8X24 |
|
Mystique |
95-97 |
M10X1,00 |
M10X1,00S |
- |
M8X1,25 |
|
Sable |
86-97 |
M10X1,00 |
M10X1,00 |
- |
M10X1,00 |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Scorpio |
88-90 |
M10X1,00 |
M10X1,00 |
- |
- |
|
XR4TI |
85-89 |
M10X1,00 |
- |
- |
- |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
MGB |
63-80 |
3/8X24 |
- |
- |
1/4X28 |
|
MG Midget |
72-76 |
3/8X24 |
- |
- |
1/4X28 |
|
MGTC |
48 |
- |
- |
7/16X20 |
5/16X24L |
|
MGA |
60 |
3/8X24 |
- |
- |
3/8X24 |
|
MGC |
69 |
3/8X24 |
- |
- |
3/8X24HD |
|
MGTD |
|
- |
- |
|
|
|
MGTF |
|
- |
- |
|
|
|
|
|||||
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Olds 98 |
65-69 |
3/8X24 |
- |
3/8X24 |
3/8X24 |
|
Olds 98 |
70 |
3/8X24 |
- |
3/8X24 |
5/16X24 |
|
Olds |
71-78 |
3/8X24 |
- |
- |
5/16X24 |
|
Olds |
79-97 |
M10X1,50 |
- |
3/8X24 |
5/16X24 |
|
Acheiva |
92-96 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Aurora |
95-97 |
M10X1,50 |
M10X1,50 |
- |
- |
|
Bravada |
91-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Calais |
85-91 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Ciers |
82-96 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Cutlass |
68-77 |
3/8X24 |
- |
- |
5/16X24 |
|
Cutlass |
78-97 |
M10X1,50 |
M10X1,50 |
- |
M8X1,25 |
|
Delta 88 |
71-78 |
- |
- |
- |
5/16X24 |
|
Delta |
79-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Silhouette |
90-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Outlaw Racing Calipers |
all |
1/4X28 |
1/4X28 |
- |
- |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Acclaim |
89-95 |
3/8X24 |
- |
- |
5/16X24 |
|
Barracuda |
67-68 |
- |
- |
1/4X28 |
5/16X24 |
|
Barracuda |
69-74 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Belvedere |
62-69 |
- |
- |
5/16X24 |
5/16X24 |
|
Belvedere |
70-75 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Road Runner |
68-69 |
- |
- |
5/16X24 |
5/16X24 |
|
Road Runner |
70-75 |
3/8X24 |
- |
- |
5/16X24 |
|
Breeze |
96-97 |
3/8X24 |
3/8X24 |
- |
5/16X24 |
|
Colt/Colt Turbo |
83-88 |
M10X1,00 |
- |
- |
M10X1,00 |
|
Colt |
89-91 |
M7X1,00 |
- |
- |
M7X1,00 |
|
Colt |
92-94 |
M7X1,00 |
M7X1,00 |
- |
M7X1,00 |
|
Horizon |
78-90 |
3/8X24 |
- |
- |
5/16X24 |
|
Turismo |
78-90 |
3/8X24 |
- |
- |
5/16X24 |
|
Laser |
91-94 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Reliant |
81-89 |
3/8X24 |
- |
- |
5/16X24 |
|
Valient |
65-68 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Valient |
69-76 |
3/8X24 |
- |
- |
5/16X24 |
|
Duster |
69-76 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Scamp |
69-76 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Scamp |
82-83 |
3/8X24 |
- |
- |
5/16X24 |
|
Voyager |
84-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Grand Voyager |
84-97 |
3/8X24 |
- |
- |
5/16X24 |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
6000 |
82-91 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Bonneville |
69-78 |
3/8X24 |
- |
- |
5/16X24 |
|
Bonneville |
79-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Catalina |
69-78 |
M10X1,50 |
- |
- |
5/16X24 |
|
Catalina |
79-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Safari Wagon |
69-78 |
3/8X24 |
- |
- |
5/16X24 |
|
Safari Wagon |
79-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Fiero |
84-88 |
M10X1,50 |
M10X1,50 |
- |
- |
|
Firebird/TransAm |
67-70 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Firebird/TransAm |
71-78 |
3/8X24 |
- |
- |
5/16X24 |
|
Firebird/TransAm |
79-87 |
M10X1,50 |
M10X1,50 |
- |
M8X1,25 |
|
Firebird/TA w/HD |
88-93 |
- |
- |
- |
- |
|
Firebird/TransAm |
93-96 |
M10X1,50 |
M10X1,50 |
- |
M8X1,25 |
|
GrandAm |
85-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Grand Prix |
69-77 |
3/8X24 |
- |
- |
5/16X24 |
|
Grand Prix |
78-97 |
M10X1,50 |
M10X1,50 |
- |
M8X1,25 |
|
LeMans |
64-68 |
- |
- |
5/16X24 |
5/16X24 |
|
LeMans |
69-77 |
3/8X24 |
- |
- |
5/16X24 |
|
LeMans |
78-81 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Tempest |
64-68 |
- |
- |
5/16X24 |
5/16X24 |
|
Tempest |
69-77 |
3/8X24 |
- |
5/16X24 |
5/16X24 |
|
Tempest |
78-81 |
M10X1,50 |
- |
- |
M8X1,25 |
|
GTO |
64-68 |
- |
- |
- |
5/16X24 |
|
GTO |
69-77 |
3/8X24 |
- |
- |
5/16X24 |
|
GTO |
79-81 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Phoenix |
78-79 |
3/8X24 |
- |
- |
M8X1,25 5/16X24 |
|
Phoenix |
80-84 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Sunbird |
76-80 |
3/8X24 |
- |
- |
3/8X24 |
|
Sunbird |
82-94 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Sunfire |
95-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Transport |
90-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
| CL V6 3.0L w/2.2L, 2.3L Eng |
97-99 |
M10X1,00 |
M10X1,00 |
|
|
|
V6 3.0L w/ 3.0L Eng |
97-99 |
M10X1,25 |
M10X1,00 |
|
|
|
|
01-03 |
M10X1,25 |
|
|
M10X1,25 |
|
Integra |
86-89 |
M10X1,00 |
M10X1,25 |
|
|
|
|
90-97 |
M10X1,25 |
M10X1,25 |
|
|
|
|
98 |
M10X1,25 |
M8X1,25L |
|
|
|
|
99-01 |
M10X1,25 |
M10X1,25 |
|
|
|
Legend |
86-87 |
M10X1,25 |
M10X1,00 |
|
|
|
w/2 dr |
87-89 |
M10X1,25 |
M10X1,25 |
|
|
|
w/4 dr |
88 |
M10X1,25 |
M10X1,00 |
|
|
|
w/4 dr |
89 |
M10X1,25 |
M10X1,25 |
|
|
|
|
90-95 |
M10X1,25 |
M10X1,25 |
|
|
|
MDX |
01-02 |
M10X1,00S |
- |
|
|
|
|
03-06 |
M10X1,00 |
M10X1,00 |
|
|
|
NSX |
91-05 |
M10X1,25 |
M10X1,25 |
|
|
|
RL |
96-04 |
M10X1,25 |
M10X1,25 |
|
|
|
RSX |
02-06 |
M10X1,25 |
M10X1,25 |
|
|
|
SLX |
96-99 |
M7X1,00 |
M7X1,00 |
|
|
|
TL |
96-06 |
M10X1,25 |
M10X1,25 |
|
|
|
TSX |
04-06 |
M10X1,25 |
M10X1,25 |
|
|
|
Vigor |
92-94 |
M10X1,25 |
M10X1,25 |
|
|
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
323I |
1999 |
M8X1,25 |
M8X1,25 |
- |
- |
|
M3 |
88-99 |
M7X1,00S |
M7X1,00S |
|
|
|
|
02-06 |
M8X1,25 |
M8X1,25 |
|
|
|
All |
75-98 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
Accord |
76-87 |
M10X1,00 |
|
|
M8X1,25 |
| DX, LX |
88-89 |
M10X1,00 |
|
|
M8X1,25 |
| LXI, SEI |
88-89 |
M10X1,25 |
|
|
M8X1,25 |
|
Coupe |
90-92 |
M10X1,25 |
|
|
M8X1,25 |
|
4 dr w/ Akebono Brk |
90-97 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
w/ Nissin Brk |
90-97 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
Wagon |
91-97 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
| Coupe/Sedan 2 dr |
93-97 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
4 dr V6 |
95-97 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl |
98 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
6 cyl |
98 |
M10X1,25 |
M10X1,00 |
|
M8X1,25 |
|
4 cyl |
99 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
6 cyl |
99 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
2 dr & 4 dr 4 cyl |
00-01 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
2 dr 6 cyl |
00-01 |
M10X1,25 |
M10X1,00 |
|
M8X1,25 |
|
4 dr 6 cyl |
00-01 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
2 dr EX 4 cyl |
02 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
4 dr EX 4 cyl |
02 |
M10X1,00 |
M10X1,00 |
|
M8X1,25 |
|
6 cyl |
02 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
2 dr & 4 dr 4 cyl |
03 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
6 cyl |
03 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl |
04-07 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
6 cyl |
04-07 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl & 6 cyl EX |
08 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl LX |
08 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
Civic CRX, Del
Sol
w/1.3L eng |
84 |
M10X1,00 |
|
|
M8X1,25 |
| w/ 1.5L eng |
84 |
M10X1,25 |
|
|
M8X1,25 |
|
DX, SI |
85-87 |
M10X1,25 |
|
|
M8X1,25 |
|
HF |
85-87 |
M10X1,00 |
|
|
M8X1,25 |
|
DX, SI |
88-89 |
M10X1,00 |
|
|
M8X1,25 |
|
HF |
88-89 |
M10X1,25 |
|
|
M8X1,25 |
|
DX |
90-91 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
HF, SI |
90-91 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
|
93 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
S, SI wo/ABS |
94-95 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
w/ABS, w/V-TEC |
94-95 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
S, SI w/ABS & wo/ABS |
96-97 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
w/V-TEC |
96-97 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
| Civic exc. wagon |
73-89 |
M10X1,00 |
|
|
M8X1,25 |
|
3 dr & 4 dr DX, LX |
90-91 |
M10X1,00 |
|
|
M8X1,25 |
|
EX |
90-91 |
M10X1,25 |
|
|
M8X1,25 |
|
3 dr & 4 dr DX, LX |
92 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
EX |
92 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
2 dr DX, 3 dr, 4 dr DX, LX |
93 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
EX |
93 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
2 dr DX, 3 dr wo/ABS, LX |
94-95 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
2 dr wo/ABS, EX |
94-95 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
|
96-02 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl, 4 cyl SI |
03 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
Hybrid |
03 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl DX, HX, EX, GX, LX |
04-05 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl SI, Hybrid |
04-05 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl DX, EX, LX |
06-08 |
M10X1,00 |
M10X1,25 |
|
M8X1,25 |
|
4 cyl SI, Hybrid |
06-08 |
M10X1,25 |
M10X1,25 |
|
M8X1,25 |
| Civic Wagon |
75-84 |
M10X1,00 |
|
|
M8X1,25 |
|
2WD |
85-91 |
M10X1,00 |
|
|
M8X1,25 |
|
4WD |
85-91 |
M10X1,25 |
|
|
M8X1,25 |
| CR-V |
97-01 |
M10X1,25 |
|
|
M8X1,25 |
|
|
02 |
M10X1,25 |
M10X1,25 |
|
|
|
|
03-06 |
M10X1,00 |
M10X1,25 |
|
|
|
|
07-08 |
M10X1,25 |
M10X1,25 |
|
|
| Element |
03-08 |
M10X1,00 |
M10X1,25 |
|
|
| Fit |
07-08 |
M10X1,25 |
|
|
M8X1,25 |
| Insight |
00-02 |
M8X1,25 |
|
|
M7X1,00 |
|
Auto Trans |
03-06 |
M10X1,25 |
|
|
M7X1,00 |
|
Manual Trans |
03-06 |
M8X1,25 |
|
|
M7X1,00 |
| Odyssey |
95-98 |
M10X1,25 |
M10X1,25 |
|
|
|
|
99-01 |
M10X1,00S |
|
|
M8X1,25 |
|
|
02-04 |
M10X1,00S |
M10X1,00 |
|
|
|
|
05-08 |
M10X1,25 |
M10X1,25 |
|
|
| Passport |
94-95 |
M7X1,00 |
M7X1,00 |
|
|
|
|
96-97 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
|
98-01 |
M7X1,00 |
M7X1,00 |
|
M10X1,00 |
|
|
02 |
- |
M7X1,00 |
|
M10X1,00 |
|
Pilot |
03-08 |
M10X1,00 |
M10X1,00 |
|
|
|
Prelude |
79-82 |
M10X1,00 |
|
|
M8X1,25 |
|
|
83 |
M10X1,25 |
|
|
M8X1,25 |
|
|
84 |
M10X1,25 |
M10X1,00 |
|
|
| DX |
85-87 |
M10X1,25 |
M10X1,00 |
|
|
| SI |
85-87 |
M10X1,00 |
M10X1,00 |
|
|
|
|
88-01 |
M10X1,25 |
M10X1,25 |
|
|
|
Ridgeline |
06-08 |
M10X1,00 |
M10X1,25 |
|
|
|
S2000 |
00-08 |
M10X1,25 |
M10X1,25 |
|
|
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
J30 |
93-97 |
M10X1,00 |
M10X1,00 |
- |
- |
|
M30 Coupe |
90-92 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Q45 |
90-97 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Amigo |
89-96 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Hombre |
96-97 |
M10X1,50 |
- |
- |
M8X1,25 |
|
IMark |
81-84 |
M10X1,00 |
- |
- |
M10X1,00 |
|
IMark |
85-89 |
M7X1,00 |
- |
- |
- |
|
Impulse |
83-89 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Pickup |
81-83 |
M7X1,00 |
- |
- |
M10X1,00 |
|
Pickup |
84-95 |
M7X1,00 |
- |
- |
M7X1,00 |
|
Rodeo |
91-97 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Trooper II |
86-97 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Oasis |
96 |
M10X1,25 |
M10X1,25 |
- |
- |
|
Pickup 2, 4WD |
88-95 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
323 |
86 |
M8X1,00 |
M7X1,00 |
|
|
|
|
87-89 |
M8X1,00 |
M8X1,00 |
|
|
|
|
90-94 |
M8X1,00 |
M7X1,00 |
|
|
|
626 |
79-82 |
M8X1,00 |
|
|
- |
|
|
83-85 |
M7X1,00 |
|
|
- |
|
|
86-94 |
M7X1,00 |
M7X1,00 |
|
- |
|
|
95-02 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
929 |
88-91 |
M8X1,00 |
M7X1,00 |
|
|
|
|
92-95 |
M7X1,00 |
M7X1,00 |
|
|
|
B1800, B2000, B2200, B2600 |
76-93 |
M7X1,00 |
|
|
M7X1,00 |
|
B2300, B3000, B4000 9" Brk |
94 |
7/16X20 |
|
|
1/4X28 |
|
10" Brk |
94 |
7/16X20 |
|
|
3/8X24 |
|
9" Brk |
95-02 |
3/8X24 |
|
|
1/4X28 |
|
10" Brk |
95-02 |
3/8X24 |
|
|
3/8X24 |
|
9" Brk |
03-08 |
3/8X24 |
|
|
3/8X24 |
|
10" Brk |
03-08 |
3/8X24 |
|
|
5/16X24 |
|
B2500 9" Brk |
98-02 |
7/16X20 |
|
|
3/8X24 |
|
10" Brk |
98-02 |
7/16X20 |
|
|
5/16X24 |
|
CX-7 |
07-08 |
M8X1,00 |
M10X1,00 |
|
|
|
CX-9 |
07-08 |
M8X1,00 |
M10X1,00 |
|
|
|
GLC exc. wagon |
81-85 |
M8X1,00 |
|
|
- |
|
wagon |
81-85 |
M7X1,00 |
|
|
- |
|
|
86 |
M7X1,00 |
|
|
- |
|
Mazda 3 |
04-12 |
M8X1,25 |
M10X1,00S |
|
|
|
Mazda 5 |
06-08 |
M8X1,25 |
M10X1,00S |
|
|
|
Mazda 6 |
03-05 |
M8X1,00 |
M7X1,00 |
|
|
|
exc. Mazda Speed |
06 |
M8X1,00 |
M10X1,00 |
|
|
|
Mazda Speed |
06 |
M8X1,25 |
M10X1,00 |
|
|
|
exc. Mazda Speed |
07 |
M8X1,00 |
M10X1,00 |
|
|
|
Mazda Speed |
07 |
M8X1,25 |
M10X1,00 |
|
|
|
|
08 |
M8X1,00 |
M10X1,00 |
|
|
|
Miata, MX-5 |
90-05 |
M8X1,00 |
M7X1,00 |
|
|
|
|
06-08 |
M8X1,00 |
M8X1,25 |
|
|
|
Millenia |
95-02 |
M7X1,00 |
M7X1,00 |
|
|
|
MPV Van |
89-92 |
M8X1,00 |
|
|
- |
|
|
93-98 |
M8X1,00 |
M7X1,00 |
|
- |
|
|
99-03 |
M8X1,00 |
|
|
- |
|
|
04-06 |
M8X1,00 |
M10X1,00 |
|
|
|
MX-3 |
92-95 |
M8X1,00 |
M7X1,00 |
|
M8X1,00 |
|
MX-6 |
88-97 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
Navajo |
91-94 |
7/16X20 |
|
|
3/8X24 |
|
Protege, Protege 5 |
90-98 |
M8X1,00 |
M7X1,00 |
|
M8X1,00 |
|
1.6L eng |
99-00 |
M8X1,00 |
|
|
M8X1,00 |
|
1.8L eng |
99-00 |
M7X1,00 |
|
|
M8X1,00 |
|
1.6L eng |
01 |
M8X1,00 |
M7X1,00 |
|
M8X1,00 |
|
2.0L eng |
01 |
M7X1,00 |
M7X1,00 |
|
M8X1,00 |
|
|
02-03 |
M7X1,00 |
M7X1,00 |
|
- |
|
RX-7 |
78-80 |
M7X1,00 |
|
|
M8X1,00 |
|
|
81-85 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
Heavy Duty |
86-88 |
M8X1,00 |
M7X1,00 |
|
|
|
Standard Duty |
86-88 |
M7X1,00 |
M7X1,00 |
|
|
|
w/ Turbo |
89-90 |
M7X1,00 |
M7X1,00 |
|
|
|
w/o Turbo |
89-90 |
M8X1,00 |
M7X1,00 |
|
|
|
w/ Turbo |
91-92 |
M8X1,00 |
M7X1,00 |
|
|
|
w/o Turbo |
91-92 |
M7X1,00 |
M7X1,00 |
|
|
|
|
93-95 |
M8X1,00 |
M7X1,00 |
|
|
|
RX8 clutch M7X1,00 |
04-08 |
M8X1,00 |
M10X1,00 |
|
|
|
Tribute |
01-04 |
3/8X24 |
|
|
M7X1,00 |
|
|
05-08 |
3/8X24 |
3/8X24 |
|
|
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
3000GT VR4, 4WD / 4WS |
1/91-5/93 |
M10X1,00 |
M7X1,00 |
- |
- |
|
3000GT 2WD |
91-93 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Diamante |
92-97 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Eclipse |
89-94 |
M10X1,00 |
M10X1,00 |
- |
- |
|
EclipseGS, RS, GSXX |
95-97 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Galant |
89-93 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Montero/Montero Sport |
84-96 |
M10X1,00 |
M7X1,00 |
- |
- |
|
Pickup/ Van |
87-97 |
M10X1,00 |
- |
- |
M10X1,00 |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
200SX |
83-88 |
M10X1,00 |
- |
- |
M10X1,00 |
|
200SX |
88-97 |
M10X1,00 |
M10X1,00 |
- |
- |
|
200SX 6 cyl |
80-86 |
M10X1,00 |
M10X1,00 |
- |
- |
|
240SX |
89-97 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Z-Car |
69-78 |
M10X1,00 |
- |
- |
M7X1,00 |
|
Z-Car |
79-96 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Altima |
93-97 |
M10X1,00 |
M10X1,00 |
- |
M7X1,00 |
|
Maxima |
84-97 |
M10X1,00 |
M10X1,00 |
- |
M7X1,00 |
|
Sentra |
83-97 |
M10X1,00 |
M10X1,00 |
- |
M7X1,00 |
|
Stanza |
87-92 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Armada |
05-06 |
M10X1,00S |
M10X1,00S |
|
|
|
|
07-10 |
M10X1,00 |
M10X1,00S |
|
|
|
Pathfinder |
86-97 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Titan |
04-10 |
M10X1,00S |
M10X1,00S |
|
|
|
Quest |
93-97 |
3/8X24 |
- |
- |
- |
|
Pickup 2WD |
77-96 |
M10X1,00 |
- |
- |
- |
|
Pickup 4WD |
77-96 |
M10X1,00 |
- |
- |
- |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
911 |
69-Early 75 |
M7X1,00 |
M7X1,00 |
- |
- |
|
911 |
Late 75-89 |
M8X1,25L |
M7X1,00 |
- |
- |
|
911 Carrera 2,4 |
89-94 |
M10X1,00S |
M10X1,00S |
- |
- |
|
911 Turbo |
91-94 |
M10X1,00S |
M10X1,00S |
- |
- |
|
944S, 944 |
89 |
M10X1,00S |
M7X1,00 |
- |
- |
|
944 |
83-89 |
M7X1,00 |
M7X1,00 |
|
|
|
944 Turbo, S2 |
86-91 |
M10X1,00S |
M10X1,00S |
- |
- |
|
928 |
87-Present |
M10X1,00S |
M10X1,00S |
- |
- |
|
914-4 |
70-76 |
M7X1,00 |
M7X1,00 |
- |
- |
|
924 (4 bolt) |
76-82 |
M7X1,00 |
M7X1,00 |
- |
- |
|
928 |
82-1/86 |
M7X1,00 |
M7X1,00 |
- |
- |
|
928 |
2/86-94 |
M10X1,00S |
M7X1,00 |
- |
- |
|
924 ( 5 bolt) |
79-82 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
9000 |
86-89 |
M10X1,00S |
M10X1,00S |
- |
- |
|
9000 |
90-97 |
M7X1,00 |
M7X1,00 |
- |
- |
|
900 |
79-87 |
M10X1,00S |
M10X1,00S |
- |
- |
|
900 |
88-97 |
M8X1,25 |
M7X1,00 |
- |
- |
|
99 |
68-80 |
M10X1,00S |
M10X1,00S |
- |
- |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
Aura |
07-08 |
M10X1,00 |
M10X1,00 |
|
|
|
ION Series |
03-07 |
M10X1,00 |
|
|
- |
|
LS, LW, L300, LW300 Series |
00-04 |
M8X1,25 |
M7X1,00 |
|
M7X1,00 |
|
|
05 |
M8X1,25 |
M7X1,00 |
|
|
|
Outlook |
07-08 |
M10X1,00S |
M10X1,00S |
|
|
|
Relay |
05-07 |
M10X1,50 |
M10X1,00 |
|
|
|
SC, SL, SW Series |
91-98 |
M10X1,00 |
M10X1,00 |
|
M7X1,00 |
|
|
99-02 |
M10X1,00 |
|
|
M7X1,00 |
|
Sky |
07-08 |
M10X1,00 |
M10X1,00S |
|
|
|
VUE |
02-04 |
M8X1,25 |
|
|
M10X1,00S |
|
|
05-07 |
M10X1,00S |
|
|
- |
|
|
08 |
M10X1,00S |
M10X1,00S |
|
|
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
ALL |
91-97 |
M10X1,00S |
M10X1,00S |
- |
- |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
Forester |
98-02 |
M7X1,00 |
M7X1,00 |
|
|
|
|
03-08 |
M10X1,00 |
M7X1,00 |
|
|
|
|
09-11 |
M10X1,00 |
M10X1,00 |
|
|
|
Impreza |
93-96 |
M10X1,00 |
M10X1,00 |
|
M10X1,00 |
|
coupe & sedan |
97-98 |
M7X1,00 |
M7X1,00 |
|
|
|
4WD, 2WD wagon |
97-98 |
M7X1,00 |
M10X1,00 |
|
|
|
|
99-01 |
M7X1,00 |
M7X1,00 |
|
|
|
outback, RS, TS |
02-03 |
M10X1,00 |
M7X1,00 |
|
|
|
WRX |
02-03 |
M7X1,00 |
M7X1,00 |
|
|
|
Outback, RS, TS, WRX |
04-05 |
M10X1,00 |
M7X1,00 |
|
|
|
WRX STi |
04-05 |
M10X1,00S |
M10X1,00S |
|
|
|
2.5I, Outback Sport, WRX |
06-07 |
M10X1,00 |
M7X1,00 |
|
|
|
|
08-11 |
M10X1,00 |
M10X1,00 |
|
|
|
Impreza Outback |
97-04 |
M7X1,00 |
M7X1,00 |
|
|
|
|
05-07 |
M10X1,00 |
M7X1,00 |
|
|
|
|
08-09 |
M10X1,00 |
M10X1,00 |
|
|
|
2.5i |
10-12 |
M10X1,00 |
M10X1,00 |
|
|
|
3.6R |
10-12 |
M10X1,00 |
M7X1,00 |
|
|
|
Justy |
87-94 |
M10X1,00 |
|
|
M10X1,00 |
|
Legacy |
90-95 |
M10X1,00 |
M10X1,00 |
|
|
|
14" wheels |
96 |
M10X1,00 |
M10X1,00 |
|
|
|
15" wheels |
96 |
M7X1,00 |
M10X1,00 |
|
|
|
|
97-98 |
M7X1,00 |
M10X1,00 |
|
|
|
|
99 |
M7X1,00 |
M10X1,00 |
|
|
|
|
00-02 |
M7X1,00 |
M7X1,00 |
|
|
|
|
03-05 |
M10X1,00 |
M10X1,00 |
|
|
|
|
06-11 |
M10X1,00 |
M10X1,00 |
|
|
|
Legacy Outback |
95-96 |
M10X1,00 |
M10X1,00 |
|
|
|
|
97-04 |
M7X1,00 |
M10X1,00 |
|
|
|
|
05-07 |
M10X1,00 |
M7X1,00 |
|
|
|
|
08-09 |
M10X1,00 |
M10X1,00 |
|
|
|
SVX |
92-97 |
M10X1,00 |
M10X1,00 |
|
|
|
Tribeca |
06-11 |
M10X1,00 |
M10X1,00 |
|
|
|
Model |
Year |
Front Disc Pt. No. |
Rear Disc Pt. No. |
Front Drum Pt. No. |
Rear Drum Pt. No. |
|
Samurai |
86-95 |
M10X1,00 |
- |
- |
- |
|
Swift |
89-95 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Sidekick |
89-96 |
M10X1,00 |
- |
- |
- |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
4 Runner |
84-91 |
M10X1,00 |
|
|
M7X1,00 |
|
|
92-02 |
M10X1,00 |
|
|
M10X1,00 |
|
|
03-08 |
M7X1,00 |
M10X1,00 |
|
|
| Avalon |
95-07 |
M7X1,00 |
M7X1,00 |
|
|
|
Camry |
84-86 |
M7X1,00 |
|
|
M7X1,00 |
|
|
87-99 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
|
00-06 |
M7X1,00 |
M7X1,00 |
|
|
|
|
07-08 |
M7X1,00 |
- |
|
|
|
Camry Solara |
99-08 |
M7X1,00 |
M7X1,00 |
|
|
|
Celica |
80-81 |
M10X1,00 |
|
|
M7X1,00 |
|
|
82-83 |
M7X1,00 |
|
|
M7X1,00 |
|
|
84-98 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
|
99-05 |
M7X1,00 |
M7X1,00 |
|
|
|
Corolla |
80-84 |
M7X1,00 |
|
|
M7X1,00 |
|
|
85-92 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
|
93-02 |
M7X1,00 |
|
|
M7X1,00 |
|
|
03-05 |
M7X1,00 |
|
|
- |
|
|
06 |
M7X1,00 |
M7X1,00 |
|
- |
|
|
07-08 |
M7X1,00 |
|
|
- |
|
clutch M7X1,00 |
09 |
M7X1,00 |
|
|
M10X1,00 |
|
Cressida |
78-80 |
M10X1,00 |
|
|
M7X1,00 |
|
|
81-82 |
M7X1,00 |
|
|
M7X1,00 |
|
|
83-87 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
|
88-92 |
M7X1,00 |
M7X1,00 |
|
|
|
Echo |
00-05 |
M7X1,00 |
|
|
M7X1,00 |
|
FJ Cruiser |
07-08 |
M7X1,00 |
M10X1,00 |
|
|
|
Highlander |
01-07 |
M7X1,00 |
M7X1,00 |
|
|
|
|
08 |
M7X1,00 |
- |
|
M7X1,00 |
|
Land Cruiser |
90-92 |
M10X1,00 |
|
|
- |
|
|
93-97 |
M10X1,00 |
M10X1,00 |
|
- |
|
|
98-07 |
M10X1,00 |
M10X1,00 |
|
|
|
Matrix |
03 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
|
04-06 |
M7X1,00 |
M7X1,00 |
|
|
|
|
07-08 |
M7X1,00 |
|
|
- |
|
MR-2 |
85-95 |
M7X1,00 |
M7X1,00 |
|
|
|
MR-2 Spyder |
00-02 |
M7X1,00 |
M7X1,00 |
|
|
|
|
03-05 |
M7X1,00 |
- |
|
|
|
Paseo |
92-98 |
M7X1,00 |
|
|
M7X1,00 |
|
Pickup, Hilux |
75-78 |
M10X1,00 |
|
|
M10X1,00 |
|
2WD |
79 |
M10X1,00 |
|
|
M10X1,00 |
|
1 Ton, 2WD 1/2, 3/4 Ton |
80-82 |
M10X1,00 |
|
|
M10X1,00 |
|
|
83 |
M10X1,00 |
M10X1,00 |
|
M10X1,00 |
|
2WD |
84 |
M7X1,00 |
|
|
M10X1,00 |
|
2WD 1/2 or 3/4 Ton |
85-87 |
M7X1,00 |
|
|
M10X1,00 |
|
2WD 1/2, 3/4 Ton |
88 |
M7X1,00 |
|
|
M10X1,00 |
|
4WD w/6 cyl Eng |
88 |
M10X1,00 |
|
|
- |
|
4WD, 6 cyl Eng 1 Ton 2WD |
89-92 |
M10X1,00 |
|
|
- |
|
4 cyl & 6 cyl Eng 1/2 Ton 2WD |
89-92 |
M7X1,00 |
|
|
M10X1,00 |
|
|
93-95 |
M7X1,00 |
|
|
M10X1,00 |
|
4WD, Dual rear wheels 2WD |
93-95 |
M10X1,00 |
|
|
- |
| Previa |
91-94 |
M10X1,00 |
M10X1,00 |
|
M10X1,00 |
|
|
95-97 |
M10X1,00 |
M10X1,00 |
|
- |
| Prius |
01-08 |
M7X1,00 |
|
|
M7X1,00 |
| Rav4 |
96-03 |
M7X1,00 |
|
|
M7X1,00 |
|
|
04-08 |
M7X1,00 |
- |
|
|
| Sequoia |
01-03 |
M10X1,00 |
M10X1,00 |
|
|
|
|
04-07 |
M7X1,00 |
M10X1,00 |
|
|
|
Sienna |
98-03 |
M7X1,00 |
|
|
M7X1,00 |
|
|
04-08 |
M7X1,00 |
M7X1,00 |
|
M10X1,00 |
|
Starlet |
81-84 |
M7X1,00 |
|
|
M7X1,00 |
|
Supra, Celica Supra |
79-81 |
M10X1,00 |
M10X1,00 |
|
|
|
|
82-92 |
M7X1,00 |
M7X1,00 |
|
|
|
w/ Turbo |
93-98 |
M10X1,00 |
M10X1,00 |
|
|
|
wo/ Turbo |
93-98 |
M7X1,00 |
M7X1,00 |
|
|
|
T100 Pickup 2WD 1/2 Ton |
93-98 |
M7X1,00 |
|
|
M10X1,00 |
|
4WD, 2WD 1 Ton |
93-98 |
M10X1,00 |
|
|
M10X1,00 |
|
Tercel |
80-98 |
M7X1,00 |
|
|
M7X1,00 |
| Tacoma 2WD |
95-97 |
M7X1,00 |
|
|
M10X1,00 |
|
4WD |
95-97 |
M10X1,00 |
|
|
M10X1,00 |
|
2.7L, 3.4L Pre Runner, 4WD |
98-04 |
M10X1,00 |
|
|
M10X1,00 |
|
2WD 2.4L, 3.4L exc. PreRunner |
98-04 |
M7X1,00 |
|
|
M10X1,00 |
|
clutch M10X1,00 |
05-10 |
M7X1,00 |
|
|
M10X1,00 |
|
Tundra |
99-02 |
M10X1,00 |
|
|
M10X1,00 |
|
mid year front caliper change |
03 |
M10X1,00 or M7X1,00 |
|
|
M10X1,00 |
|
|
04-06 |
M7X1,00 |
|
|
M10X1,00 |
|
|
07-08 |
M7X1,00 |
M7X1,00 |
|
|
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
Cabriolet |
85-96 |
M7X1,00 |
- |
- |
M7X1,00 |
|
Corrado |
89-95 |
M7X1,00 |
- |
- |
M7X1,00 |
|
GTI |
85-95 |
M7X1,00 |
M7X1,00 |
- |
- |
|
Golf |
85-95 |
M7X1,00 |
M7X1,00 |
- |
M7X1,00 |
|
Golf VR6 |
96 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Jetta |
81-84 |
M7X1,00 |
- |
- |
M7X1,00 |
|
Jetta |
85-87 |
M7X1,00 |
M7X1,00 |
- |
M7X1,00 |
|
Jetta |
89-95 |
M7X1,00 |
M7X1,00 |
- |
M7X1,00 |
|
Jetta TDI |
04 |
M10X1,00 |
M10X1,00S |
|
|
|
Passat VR6 |
95-96 |
M10X1,00 |
M10X1,00 |
- |
- |
|
Passat |
90-97 |
M7X1,00 |
M7X1,00 |
- |
- |
|
R32 |
08 |
M10X1,00 |
M10X1,00S |
|
|
|
Rabbit |
75-84 |
M7X1,00 |
- |
- |
M7X1,00 |
|
Scirocco |
75-84 |
M7X1,00 |
- |
- |
M6X1,00 |
|
Scirocco |
85-90 |
M7X1,00 |
M7X1,00 |
- |
M7X1,00 |
|
Beetle |
All |
- |
- |
M6X1,00 |
M6X1,00 |
|
Karmann Ghia |
All |
- |
- |
M6X1,00 |
M6X1,00 |
|
Vans |
73-89 |
M7X1,00 |
- |
- |
- |
|
Vans |
92-95 |
M10X1,00 |
- |
- |
- |
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
100 Quattro Series |
89-91 |
M7X1,00 |
M10X1,00 |
- |
- |
|
|
92-94 |
M10X1,00 |
M10X1,00 |
|
|
| 100 Series w/ ATE |
89-91 |
M7X1,00 |
M10X1,00 |
|
|
|
w/ Girling |
89-91 |
M10X1,00 |
M10X1,00 |
|
|
|
|
92-94 |
M10X1,00 |
M10X1,00 |
|
|
|
200 Quattro Series |
89-90 |
M10X1,00 |
M10X1,00 |
|
|
|
2.3L |
91 |
M10X1,00S |
M10X1,00 |
|
|
|
2.2L |
91 |
M10X1,00 |
M10X1,00 |
|
|
|
200 Series |
89-91 |
M10X1,00 |
M10X1,00 |
|
|
|
4000, 4000S |
80-87 |
M7X1,00 |
|
|
M7X1,00 |
|
4000S Quattro |
84-87 |
M7X1,00 |
M7X1,00 |
|
|
|
5000 Turbo |
80-83 |
M7X1,00 |
M7X1,00 |
|
|
|
|
84-88 |
M10X1,00 |
M7X1,00 |
|
|
|
5000, 5000S |
78-83 |
M7X1,00 |
|
|
M7X1,00 |
|
|
84-88 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
5000S Quattro |
86-88 |
M10X1,00 |
M7X1,00 |
|
|
|
80 Quattro Series w/ ATE |
88 |
M7X1,00 |
M7X1,00 or M10X1,00 |
|
|
|
w/ Girling |
88 |
M10X1,00 |
M7X1,00 or M10X1,00 |
|
|
|
w/ ATE |
89-92 |
M7X1,00 |
M10X1,00 |
|
|
|
w/ Girling |
89-92 |
M10X1,00 |
M10X1,00 |
|
|
|
80 Series |
88-92 |
M10X1,00 |
M10X1,00 |
|
|
|
90 Quattro Series w/ ATE |
88 |
M7X1,00 |
early M7X1,00 late M10X1,00 |
|
|
|
w/ Girling |
88 |
M10X1,00 |
early M7X1,00 late M10X1,00 |
|
|
|
w/ ATE |
89-90 |
M7X1,00 |
M10X1,00 |
|
|
|
2 piston, w/ Girling |
89-90 |
M10X1,00 |
M10X1,00 |
|
|
|
w/ ATE |
91-92 |
M7X1,00 |
M10X1,00 |
|
|
|
w/ Girling |
91-92 |
M10X1,00 |
M10X1,00 |
|
|
|
|
93-95 |
M10X1,00 |
M10X1,00 |
|
|
|
90 Series |
88-95 |
M10X1,00 |
M10X1,00 |
|
|
|
A3 |
07 |
M10X1,00 |
M10X1,00S |
|
|
|
A3 Quattro |
07 |
M10X1,00 |
M10X1,00 |
|
|
|
A4 |
96-99 |
M10X1,00S |
M10X1,00S |
|
|
|
|
00 |
M10X1,00S |
- |
|
|
|
Base |
04-05 |
- |
M10X1,00 |
|
|
|
Cabriolet |
04-05 |
- |
M10X1,00S |
|
|
|
Cabriolet |
06 |
M10X1,00 |
M10X1,00 |
|
|
|
|
07 |
- |
M10X1,00S |
|
|
|
|
08 |
- |
M10X1,00 |
|
|
|
|
10 |
M10X1,00S |
M10X1,00S |
|
|
|
A5 |
08-10 |
M10X1,00S |
M10X1,00S |
|
|
|
A6 |
95-97 |
M10X1,00S |
M10X1,00 |
|
|
|
|
98-03 |
M10X1,00S |
M10X1,00S |
|
|
|
|
04 |
- |
M10X1,00S |
|
|
|
rear/ 302mm rotor |
05-06 |
M10X1,00 |
M10X1,00S |
|
|
|
rear/ 330mm rotor |
05-06 |
M10X1,00 |
M10X1,00 |
|
|
|
|
07 |
M10X1,00 |
M10X1,00S |
|
|
|
rear/ 302mm rotor |
08-11 |
M10X1,00 |
M10X1,00S |
|
|
|
rear/ 330mm rotor |
08-11 |
M10X1,00 |
M10X1,00 |
|
|
|
A6 Quattro |
95-97 |
M10X1,00S |
M10X1,00 |
|
|
|
|
98-03 |
M10X1,00S |
M10X1,00S |
|
|
|
|
04-06 |
- |
M10X1,00S |
|
|
|
A8 |
97-99 |
M10X1,00S |
M10X1,00S |
|
|
|
|
00-03 |
M10X1,00 |
M10X1,00 |
|
|
|
A8 Quattro front/ 385mm rotor |
04-05 |
M10X1,00S |
M10X1,00 |
|
|
|
front/ 360mm rotor |
04-05 |
M10X1,00 |
M10X1,00 |
|
|
|
|
06-11 |
M10X1,00S |
M10X1,00 |
|
|
|
Allroad Quattro |
01-03 |
M10X1,00 |
M10X1,00S |
|
|
|
|
04-05 |
M10X1,00S |
M10X1,00 |
|
|
|
Cabriolet |
94-98 |
M10X1,00S |
M10X1,00 |
|
|
|
Coupe, GT Coupe, Coupe Quattro |
81-84 |
M7X1,00 |
|
|
M7X1,00 |
|
|
85-87 |
M7X1,00 |
M7X1,00 |
|
M7X1,00 |
|
|
90-91 |
M10X1,00 |
M10X1,00 |
|
|
|
Fox |
73-79 |
M7X1,00 |
|
|
- |
|
Q5 |
09-10 |
M10X1,00S |
M10X1,00S |
|
|
|
Q7 2 bleeders per caliper, front & rear |
07-11 |
M10X1,00S |
M10X1,00S |
|
|
|
Quattro |
82-85 |
M7X1,00 |
M7X1,00 |
|
|
|
RS4 |
07-08 |
- |
M10X1,00 |
|
|
|
S4 |
92-94 |
M10X1,00 |
M10X1,00 |
|
|
|
|
00-02 |
M10X1,00 |
M10X1,00 |
|
|
|
|
04-09 |
- |
M10X1,00 |
|
|
|
S5 |
08-11 |
M10X1,00S |
M10X1,00S |
|
|
|
S6 |
95-96 |
M10X1,00 |
M10X1,00 |
|
|
|
|
02-03 |
M10X1,00 |
M10X1,00S |
|
|
|
|
07-11 |
M10X1,00S |
M10X1,00 |
|
|
|
S8 |
01-03 |
- |
M10X1,00S |
|
|
|
|
05 |
- |
M10X1,00 |
|
|
|
|
07-09 |
M10X1,00 |
- |
|
|
|
TT |
00-03 |
M10X1,00S |
M10X1,00S |
|
|
|
|
04-09 |
M10X1,00S |
M10X1,00 |
|
|
|
TT Quattro |
00-03 |
M10X1,00S |
M10X1,00S |
|
|
|
4 cyl |
04-06 |
M10X1,00 |
M10X1,00 |
|
|
|
6 cyl |
04-06 |
M7X1,00 |
M10X1,00 |
|
|
|
|
08-11 |
M10X1,00S |
M10X1,00 |
|
|
|
Model |
Year |
Front Disc |
Rear Disc |
Front Drum |
Rear Drum |
|
Defender |
94-97 |
M10X1,00S |
M10X1,00S |
|
|
|
Discovery |
95-02 |
M10X1,00S |
M10X1,00S |
|
|
|
LR2 |
08-10 |
M8X1,25 |
M10X1,00S |
|
|
|
LR3 |
05-09 |
M10X1,00S |
M10X1,00S |
|
|
|
Range Rover |
95-02 |
M10X1,00S |
M10X1,00S |
|
|
