HYDRAULIC RELEASE BEARINGS


Tilton offers a wide range of hydraulic release bearings (HRB) for use with push-type clutches. Hydraulic release bearings are available for use with smaller diameter racing clutches (4.5", 5.5" & 7.25") and most OE-type clutches.   Tilton hydraulic release bearings are designed to eliminate the need for
mechanical linkages, pivot balls, spacers and external slave cylinders.
Modulation and release travel can be adjusted by changing master cylinder bore size and/or clutch pedal ratio. Most Tilton hydraulic release bearing assemblies have a total of .700" of piston travel.

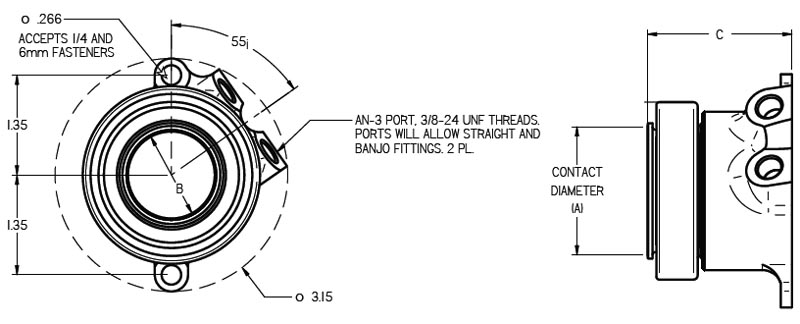

1000 SERIES
Typical Application: Bulk head mounted inside transmissions or bellhousings.

Mount: 3-bolt pattern
Material: Billet aluminum body and piston

Maximum stroke: 700" (17.8mm)
Ports: AN3 (3/8"-24)
Weight: .95 lbs (varies by part number)
Includes: AN3 steel braided line (90") and related fittings


Clutch Type Part No. Contact Diameter (A) Inside Diameter (B) Overall Height (C) uses Piston uses Bearing
100xx Series
 5.5" - 8.5" Clutches 60-1000 52mm 35.56m 51.8mm 62-612 62-002
11xx Series
8.5" - 11.0" Bent finger clutches 60-1100 43,4-77,0mm   45.5mm 62-12 62-618
12xx Series
5.5" - 7.25" Clutches 60-1200 44mm 35,8mm 47,5 - 46,2mm* 62-6000 62-031
5.5" - 7.25" Clutches 60-1210 44mm 35,8mm 50,0 - 48,8mm* 62-6001 62-031
5.5" - 7.25" Clutches 60-1220 44mm 35,8mm 52,3 - 51,3mm* 62-6002 62-031
5.5" - 7.25" Clutches 60-1230 44mm 35,8mm 55,1 - 56,4mm* 62-6003 62-031
5.5" - 7.25" Clutches 60-1240 44mm 35,8mm 57,7 - 58,9mm* 62-6004 62-031
5.5" - 7.25" Clutches 60-1250 44mm 35,8mm 60,2 - 61,5mm* 62-6005 62-031
5.5" - 7.25" Clutches 60-1260 44mm 35,8mm 62,7 - 64,0mm* 62-6006 62-031
5.5" - 7.25" Clutches 60-1270 44mm 35,8mm 65,3 - 66,5mm* 62-6007 62-031
5.5" - 7.25" Clutches 60-1280 44mm 35,8mm 67,8 - 69.0mm* 62-6008 62-031
5.5" - 7.25" Clutches 60-1290 44mm 35,8mm 70,4 - 69,0mm* 62-6009 62-031
13xx Series
4.5" - 5.5"  Clutches 60-1300 38mm 32,0mm 47,5 - 46,2m* 62-6000 62-008
4.5" - 5.5"  Clutches 60-1310 38mm 32,0mm 50,0 - 48,8mm* 62-6001 62-008
4.5" - 5.5"  Clutches 60-1320 38mm 32,0mm 52,3 - 51,3mm* 62-6002 62-008
4.5" - 5.5"  Clutches 60-1330 38mm 32,0mm 55,1 - 53,8mm* 62-6003 62-008
4.5" - 5.5"  Clutches 60-1340 38mm 32,0mm 57,7 - 56,4mm* 62-6004 62-008
4.5" - 5.5"  Clutches 60-1350 38mm 32,0mm 60,2 - 58,9mm* 62-6005 62-008
4.5" - 5.5"  Clutches 60-1360 38mm 32,0mm 62,7 - 61,5mm* 62-6006 62-008
4.5" - 5.5"  Clutches 60-1370 38mm 32,0mm 65,3 - 64,0mm* 62-6007 62-008
4.5" - 5.5"  Clutches 60-1380 38mm 32,0mm 67.8 - 66,5mm* 62-6008 62-008
4.5" - 5.5"  Clutches 60-1390 38mm 32,0mm 70,4 - 69,0mm* 62-6009 62-008

Tekeningen met maten       *= with-w/o shim

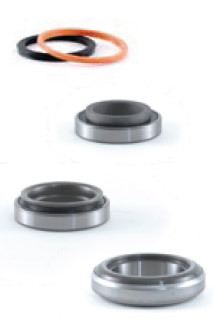

Service Parts
Description Part Number
Seal kit 62-905

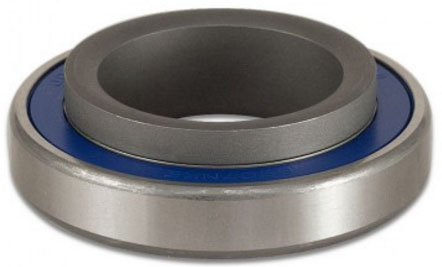

Replacement bearing, 38mm contact diameter, radius face 62-008
Replacement bearing, 44mm contact diameter, radius face 62-031
Replacement bearing, 52mm contact diameter, radius face 62-002
Replacement bearing, 43,4-77 mm contact diameter, flat face 62-618















======================================




3000 SERIES
Typical Application: Bulk head mounted inside transmissions or bellhousings.

Mount: 3-bolt pattern
Material: Billet aluminum body and piston

Maximum stroke: 700" (17.8mm)
Ports: AN3 (3/8"-24)
Weight: .90 lbs (varies by part number)
Includes: AN3 steel braided line (90") and related fittings


Clutch Type Part No. Contact Diameter (A) Inside Diameter (B) Overall Height (C) uses Piston uses Bearing
30xx Series
 5.5" - 8.5" Clutches 61-3000 52mm 35.56m 76.2mm 62-612 62-002
31xx Series
8.5" - 11.0" Bent finger clutches 61-3100 43,4-77,0mm   78.8mm 62-6100 62-618
32xx Series
5.5" - 7.25" Clutches 60-3200 44mm 35.71mm 71,6 - 70,4mm* 62-6000 62-031
5.5" - 7.25" Clutches 60-3210 44mm 35.71mm 74,2 - 72,9mm* 62-6001 62-031
5.5" - 7.25" Clutches 60-3220 44mm 35.71mm 76,7 - 75,4mm* 62-6002 62-031
5.5" - 7.25" Clutches 60-3230 44mm 35.71mm 79,2 - 78,0mm* 62-6003 62-031
5.5" - 7.25" Clutches 60-3240 44mm 35.71mm 81,8 - 80,5mm* 62-6004 62-031
5.5" - 7.25" Clutches 60-3250 44mm 35.71mm 84,3 - 83,1mm* 62-6005 62-031
5.5" - 7.25" Clutches 60-3260 44mm 35.71mm 86,9 - 85,6mm* 62-6006 62-031
5.5" - 7.25" Clutches 60-3270 44mm 35.71mm 89,4 - 88,1mm* 62-6007 62-031
5.5" - 7.25" Clutches 60-3280 44mm 35.71mm 91,9 - 90,7mm* 62-6008 62-031
5.5" - 7.25" Clutches 60-3290 44mm 35.71mm 94,5 - 93,2mm* 62-6009 62-031
33xx Series
4.5" - 5.5"  Clutches 60-3300 38mm 32,00mm 71,6 - 70,4mm* 62-6000 62-008
4.5" - 5.5"  Clutches 60-3310 38mm 32,00mm 74,2 - 72,9mm* 62-6001 62-008
4.5" - 5.5"  Clutches 60-3320 38mm 32,00mm 76,7 - 75,4mm* 62-6002 62-008
4.5" - 5.5"  Clutches 60-3330 38mm 32,00mm 79,2 - 78,0mm* 62-6003 62-008
4.5" - 5.5"  Clutches 60-3340 38mm 32,00mm 81,8 - 80,5mm* 62-6004 62-008
4.5" - 5.5"  Clutches 60-3350 38mm 32,00mm 84,3 - 83,1mm* 62-6005 62-008
4.5" - 5.5"  Clutches 60-3360 38mm 32,00mm 86,9 - 85,6mm* 62-6006 62-008
4.5" - 5.5"  Clutches 60-3370 38mm 32,00mm 89,4 - 88,1mm* 62-6007 62-008
4.5" - 5.5"  Clutches 60-3380 38mm 32,00mm 91,9 - 90,7mm* 62-6008 62-008
4.5" - 5.5"  Clutches 60-3390 38mm 32,00mm 94,5 - 93,2mm* 62-6009 62-008

Tekeningen met maten       *= with-w/o shim



Service Parts
Description Part Number
Seal kit 62-905
Replacement bearing, 38mm contact diameter, radius face 62-008
Replacement bearing, 44mm contact diameter, radius face 62-031
Replacement bearing, 52mm contact diameter, radius face 62-002
Replacement bearing, 43,4-77 mm contact diameter, flat face 62-618

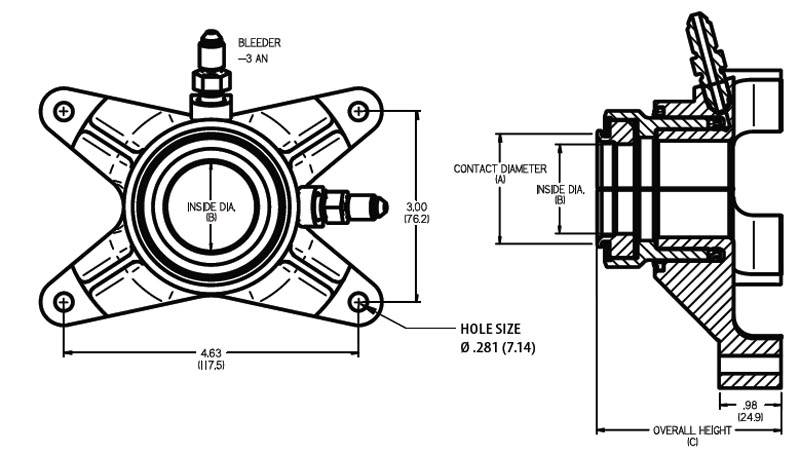

4000 SERIES
Typical Application: Direct mount into Tilton 52/53-Series steel bellhousings.

  Can also be adapted to mount inside other bellhousings.
Mount: 4-bolt pattern
Material: Cast aluminum body and billet aluminum piston
Piston area: 1.215 in2 (784mm2)
Maximum stroke: .700" (17.8mm)
Ports: AN3 (3/8"-24)
Weight: 1.15 lbs (varies by part number)

Clutch Type Part No. Contact Diameter (A) Inside Diameter (B) Overall Height (C) Uses Piston Uses Bearing
60-40xx Series
5.5" - 8.5" Clutches 60-4000 52mm 35,56mm 71,0mm 62-612 62-002
60-41xx Series
8.5" -11.0" Clutches 60-4100 43,4 - 77,0mm   64,5mm 62-6100 62-618
60-42xx Series
5.5" - 7.25" Clutches 60-4200 44mm 35,71 66,5 - 65,3mm* 62-6000 62-031
5.5" - 7.25" Clutches 60-4210 44mm 35,71 69,0 - 67,8mm* 62-6001 62-031
5.5" - 7.25" Clutches 60-4220 44mm 35,71 71,6 - 70,4mm* 62-6002 62-031
5.5" - 7.25" Clutches 60-4230 44mm 35,71 74,2 - 72,9mm* 62-6003 62-031
5.5" - 7.25" Clutches 60-4240 44mm 35,71 76,7 - 75,4mm* 62-6004 62-031
5.5" - 7.25" Clutches 60-4250 44mm 35,71 79,2 - 78,0mm* 62-6005 62-031
5.5" - 7.25" Clutches 60-4260 44mm 35,71 81,8 - 80,5mm* 62-6006 62-031
5.5" - 7.25" Clutches 60-4270 44mm 35,71 84,3 - 83,0mm* 62-6007 62-031
5.5" - 7.25" Clutches 60-4280 44mm 35,71 86,9 - 85,6mm* 62-6008 62-031
5.5" - 7.25" Clutches 60-4290 44mm 35,71 89,4 - 88,1mm* 62-6009 62-031
60-43xx Series
4.5" - 5.5" Clutches 60-4300 38mm 32,00 66,5 - 65,3mm* 62-6000 62-008
4.5" - 5.5" Clutches 60-4310 38mm 32,00 69,0 - 67,8mm* 62-6001 62-008
4.5" - 5.5" Clutches 60-4320 38mm 32,00 71,6 - 70,4mm* 62-6002 62-008
4.5" - 5.5" Clutches 60-4330 38mm 32,00 74,2 - 72,9mm* 62-6003 62-008
4.5" - 5.5" Clutches 60-4340 38mm 32,00 76,7 - 75,4mm* 62-6004 62-008
4.5" - 5.5" Clutches 60-4350 38mm 32,00 79,2 - 78,0mm* 62-6005 62-008
4.5" - 5.5" Clutches 60-4360 38mm 32,00 81,8 - 80,5mm* 62-6006 62-008
4.5" - 5.5" Clutches 60-4370 38mm 32,00 84,3 - 83,0mm* 62-6007 62-008
4.5" - 5.5" Clutches 60-4380 38mm 32,00 86,9 - 85,6mm* 62-6008 62-008
4.5" - 5.5" Clutches 60-4390 38mm 32,00 89,4 - 88,1mm* 62-6009 62-008

Tekeningen met maten       *= with-w/o shim


Service Parts
Description Part Number
Seal kit 62-905
Replacement bearing, 38mm contact diameter, radius face 62-008
Replacement bearing, 44mm contact diameter, radius face 62-031
Replacement bearing, 52mm contact diameter, radius face 62-002
Replacement bearing, 43,4-77,0 mm contact diameter, flat face 62-618

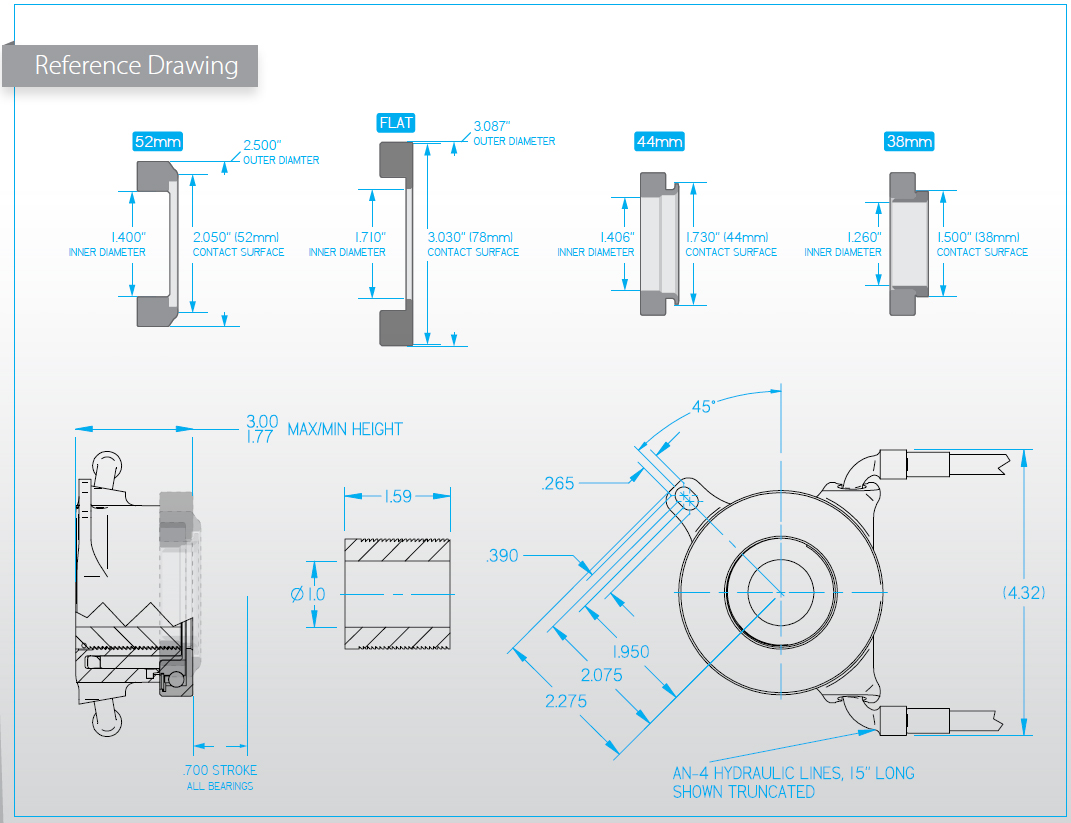

6000 SERIES



Typical Application: Adjustable hydraulic release bearing that is designed to mount onto transmissio input shaft bearing retainer



Mount: 3-bolt pattern
Material: Billet aluminum
Piston area: 1.215 in2 (788mm2)
Maximum stroke: .700" (17.8mm)
Ports: 3/8x24
Weight:
Includes: 2x AN3 fitting

  Bearings will fit the old type Bearing retainer





6000-Series Hydraulic release bearings features Tilton race-proven reliability for the street. These Hydraulic release bearings have been disigned for ease of installation and maximum reliablity at a very competitive price. 6000 Series HRB's feature a stainless steel threaded bearing retainer mount sleeve that offers nearly 1.25" of adjustability. Available for popular transmission models.



Application Art. No. Contact Uses Piston Clutch DIameter Adjustment Range Seal Kit
Ford Tremec TKO/500/600 60-6102 flat face 1.71"-3,03"" 62-6100 8,5" - 11" 1.77" - 3.00"
Toploader (1 1/16x10 input shaft) 60-6102 flat face 1.71"-3,03"" 62-6100 8,5" - 11" 1.77" - 3.00"
Ford T-5 60-6104 flat face 1.71"-3,03"" 62-6100 8,5" - 11" 1.77" - 3.00"
GM Tremec T56 8.5 "- 11" clutches 60-6105 flat face 1.71"-3,03"" 62-6100 8,5" - 11"
GM Tremec TKO 500/600 & Saginaw 60-6101 flat face 1.71"-3,03"" 62-6100 8,5" - 11" 1.77" - 3.00"
GM T-5 60-6103 flat face 1.71"-3,03"" 62-6100 8,5" - 11" 1.77" - 3.00"
Universal 60-6100* flat face 1.71"-3,03"" 62-6100 8,5" - 11" 1.77" - 3.00"
Universal 60-6000* 52mm Radius face 62-612 5,5" - 8.5" 1.77" - 3.00"
Universal 60-6230* 44mm Radius face 62-6003 5,5" - 7.25" 1.77" - 3.00"
Universal 60-6330* 38mm Radius face 62-6003 4,5" - 5.5" 1.77" - 3.00"
* Adjustment sleeve has a 1.0" pilot hole that customers can bore (up 1.437") to suit custom applications



Clutch Type Part No. Contact Diameter (A) Inside Diameter (B) Overall Height (C) Uses Piston Uses Bearing
60-40xx Series
5.5" - 8.5" Clutches 60-4000 52mm 35,56mm 71,0mm 62-612 62-002
60-41xx Series
8.5" -11.0" Clutches 60-4100 43,4 - 77,0mm   64,5mm 62-6100 62-618
60-42xx Series
5.5" - 7.25" Clutches 60-4200 44mm 35,71 66,5 - 65,3mm* 62-6000 62-031
5.5" - 7.25" Clutches 60-4210 44mm 35,71 69,0 - 67,8mm* 62-6001 62-031
5.5" - 7.25" Clutches 60-4220 44mm 35,71 71,6 - 70,4mm* 62-6002 62-031
5.5" - 7.25" Clutches 60-4230 44mm 35,71 74,2 - 72,9mm* 62-6003 62-031
5.5" - 7.25" Clutches 60-4240 44mm 35,71 76,7 - 75,4mm* 62-6004 62-031









Service Parts
Description Part Number
Seal kit 62-905
Replacement bearing, 38mm contact diameter, radius face 62-008
Replacement bearing, 44mm contact diameter, radius face 62-031
Replacement bearing, 52mm contact diameter, radius face 62-002

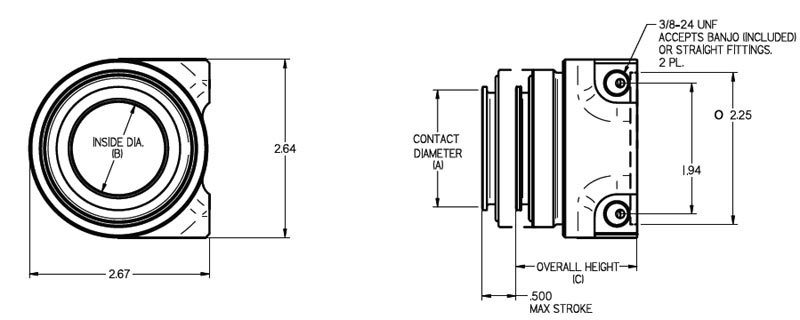

700 SERIES
Typical Application: Slip fit over transaxle pilot tube

Mount: Slip fit onto 1.375" (35mm) pilot tube
Material: Billet aluminum body and piston
Piston area: 1.221 in2 (788mm2)
Maximum stroke: .500" (12.7mm)
Ports: AN3 (3/8"-24)
Weight: .70 lbs (varies by part number)
Includes: AN3 steel braided line (90") and related fittings


Clutch Type Part Number Contact Diameter (A) Inside Diameter (B) Overall Height (C) Uses Piston Uses Bearing
4.5" - 5.5" Tilton 61-778 38mm 32,0mm 43,2mm   62-008
7.25" Tilton 61-772 44mm 35,1mm 78,8mm   62-031
8.5" Tilton; 4.5" - 7.25" non-Tilton 61-770 52mm 32,0mm 42,7mm   62-002



Service Parts
Description Part Number
Seal kit 62-905
Replacement bearing, 38mm contact diameter, radius face 62-008
Replacement bearing, 44mm contact diameter, radius face 62-031
Replacement bearing, 52mm contact diameter, radius face 62-002
Hydraulic line, braided, AN3, 90", 90 degree banjos 62-565
Banjo bolt, AN3, includes washers 62-520
Fitting, AN3, female, straight 62-515
Fitting, AN3, female, bleed 62-543
Bleedscrew, AN3 28696

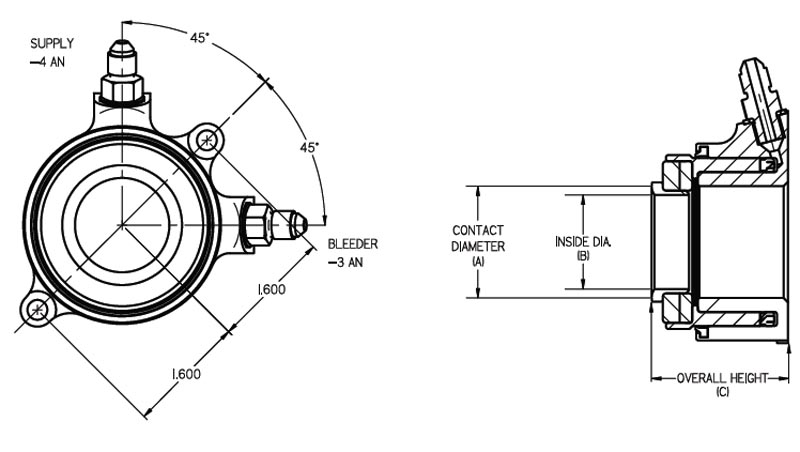

8000 SERIES
Typical Application: Applications that require a very low profile assembly.

  Mounts onto transmission/bellhousing (typically with an adapter).
Mount: 2-bolt
Material: Billet aluminum body and piston
Piston area: 1.221 in2 (788mm2)
Maximum stroke: Varies by part number
Ports: AN3 (3/8"-24)
Weight: .70 lbs (varies by part number)
Includes: Supply and bleed port fittings
  38mm ID (Id may vary on piston & bearing)
Clutch Type Part Number Contact Diameter (A) Stroke Overall Height (C) Uses Piston Uses Bearing
8000 Series
5.5" - 8.5" Cluchtes 60-8000 52mm 17,8mm 52,0mm 62-612 62-002
8100 Series
8.5" - 11,0" Clutches 60-8100 43,4-70,0mm 17,8mm 45,5mm 62-6100 62-618
8200 Series
5.5" - 7.25" Clutches Ultra low 60-8122 44mm 12,7mm 36,6mm 62-6200 62-031
5.5" - 7.25" Clutches Ultra low 60-8002 44mm 16,5mm 40,6mm 62-686 62-031
5.5" - 7.25" Clutches 60-8200 44mm 17,8mm 47,5 - 46,2mm* 62-6000 62-031
5.5" - 7.25" Clutches 60-8210 44mm 17,8mm 50,0 - 48,8mm* 62-6001 62-031
5.5" - 7.25" Clutches 60-8220 44mm 17,8mm 52,3 - 51,3mm* 62-6002 62-031
5.5" - 7.25" Clutches 60-8230 44mm 17,8mm 55,1 - 53,8mm* 62-6003 62-031
5.5" - 7.25" Clutches 60-8240 44mm 17,8mm 57,7 - 56,4mm* 62-6004 62-031
5.5" - 7.25" Clutches 60-8250 44mm 17,8mm 60,2 - 58,9mm* 62-6005 62-031
5.5" - 7.25" Clutches 60-8260 44mm 17,8mm 62,7 - 61,5mm* 62-6006 62-031
5.5" - 7.25" Clutches 60-8270 44mm 17,8mm 65,3 - 64,0mm* 62-6007 62-031
5.5" - 7.25" Clutches 60-8280 44mm 17,8mm 67,8 - 66,5mm* 62-6008 62-031
5.5" - 7.25" Clutches 60-8290 44mm 17,8mm 70,4 - 69,0mm* 62-6009 62-031
8300 Series
4.5" - 5.5" Clutches 60-8300 38mm 17,8mm 47,5 - 46,2mm* 62-6000 62-008
4.5" - 5.5" Clutches 60-8310 38mm 17,8mm 50,0 - 48,8mm* 62-6001 62-008
4.5" - 5.5" Clutches 60-8320 38mm 17,8mm 52,3 - 51,3mm* 62-6002 62-008
4.5" - 5.5" Clutches 60-8330 38mm 17,8mm 55,1 - 53,8mm* 62-6003 62-008
4.5" - 5.5" Clutches 60-8340 38mm 17,8mm 57,7 - 56,4mm* 62-6004 62-008
4.5" - 5.5" Clutches 60-8350 38mm 17,8mm 60,2 - 58,9mm* 62-6005 62-008
4.5" - 5.5" Clutches 60-8360 38mm 17,8mm 62,7 - 61,5mm* 62-6006 62-008
4.5" - 5.5" Clutches 60-8370 38mm 17,8mm 65,3 - 64,0mm* 62-6007 62-008
4.5" - 5.5" Clutches 60-8380 38mm 17,8mm 67,8 - 66,5mm* 62-6008 62-008
4.5" - 5.5" Clutches 60-8390 38mm 17,8mm 70,4 - 69,0mm* 62-6009 62-008

Tekeningen met maten       *= with-w/o shim



Service Parts
Description Part Number
Seal kit 62-905
Replacement bearing, 38mm contact diameter, radius face 62-008
Replacement bearing, 43,4-77 mm contact diameter, flat face 62-031
Replacement bearing, 44mm contact diameter, radius face 62-618
Replacement bearing, 52mm contact diameter, radius face 62-002















5000 Series
Typical Application: Bulkhead mounted inside transmissions or bellhousings


Mount: 4-bolt (Tilton bellhousings)
Material: Aluminum body and piston
Piston area: 1.215 in2 (788mm2)
Maximum stroke: .700" (17.8mm)
Ports: AN3 (3/8"-24)



Clutch type Part Number Hight with shim Hight without shim Uses Piston Uses Bearing
52xx Series
5.5" -  7.25" 60-5200 48,8 mm 47,5 mm 62-6000 62-031
5.5" -  7.25" 60-5210 51,3 mm 50,0 mm 62-6001 62-031
5.5" -  7.25" 60-5220 53,8 mm 52,6 mm 626002 62-031
5.5" -  7.25" 60-5230 56,4 mm 55,1 mm 62-6003 62-031
5.5" -  7.25" 60-5240 58,9 mm 57,7 mm 62-6004 62-031
5.5" -  7.25" 60-5250 61,5 mm 60,2 mm 62-6005 62-031
5.5" -  7.25" 60-5260 64,0 mm 62,7 mm 62-6006 62-031
5.5" -  7.25" 60-5270 66,5 mm 65,3 mm 62-6007 62-031
5.5" -  7.25" 60-5280 69,1 mm 67,8 mm 62-6008 62-031
5.5" -  7.25" 60-5290 71,6 mm 70,4 mm 62-6009 62-031
53xx Series
4.5" -  5.5" 60-5300 48,8 mm 47,5 mm 62-6000 62-008
4.5" -  5.5" 60-5310 51,3 mm 50,0 mm 62-6001 62-008
4.5" -  5.5" 60-5320 53,8 mm 52,6 mm 62-6002 62-008
4.5" -  5.5" 60-5330 56,4 mm 55,1 mm 62-6003 62-008
4.5" -  5.5" 60-5340 58,9 mm 57,7 mm 62-6004 62-008
4.5" -  5.5" 60-5350 61,5 mm 60,2 mm 62-6005 62-008
4.5" -  5.5" 60-5360 64,0 mm 62,7 mm 62-6006 62-008
4.5" -  5.5" 60-5370 66,5 mm 65,3 mm 62-6007 62-008
4.5" -  5.5" 60-5380 69,1 mm 67,8 mm 62-6008 62-008
4.5" -  5.5" 60-5390 71,6 mm 70,4 mm 62-6009 62-008
v






Service Parts
Description Part Number
Seal kit 62-905
Replacement bearing, 38mm contact diameter, radius face 62-008
Replacement bearing, 44mm contact diameter, radius face 62-031
Hydraulic line, braided, AN3, 90", two female fittings 62-563
Fitting, union, AN3, male 73-815-3L
Fitting, AN3, female, straight 62-515
Fitting, AN3, female, bleed 62-543
Bleedscrew, AN3 28696

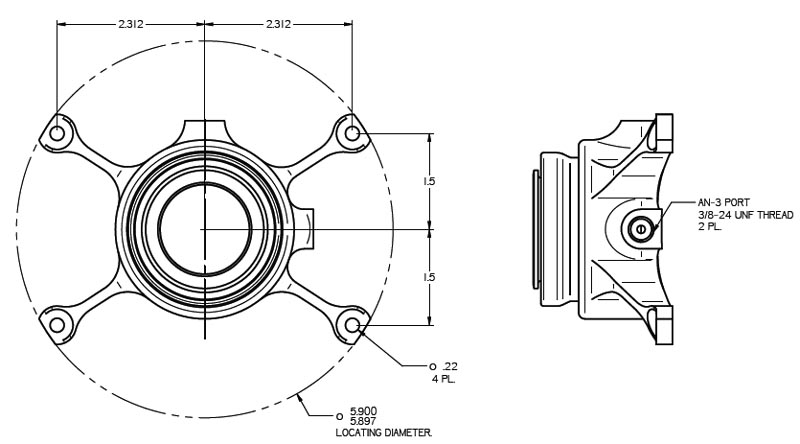

1600 SERIES
Typical Application: Direct mount into Tilton 52-Series aluminum and 53-Series aluminum &

  magnesium bellhousings.
Mount: 4-bolt (Tilton bellhousings)
Material: Billet aluminum body and piston
Piston area: 1.221 in2 (788mm2)
Maximum stroke: Limited by positive stop
Ports: AN3 (3/8"-24)
Weight: .80 lbs (varies by part number)
Includes: Supply and bleed port fittings


Bellhousing Type Part Number Clutch Type Uses Piston Uses Bearing
52-Series Aluminum 61-1612 7.25" 3-plate metallic   62-031
53-Series Magnesium/Aluminum 61-1612 7.25" 2-plate metallic   62-031
53-Series Magnesium/Aluminum 61-1602 7.25" 3-plate metallic   62-031



Service Parts
Description Part Number
Seal kit 62-905
Replacement bearing, 44mm contact diameter, radius face 62-031
Piston, .45" stroke, 1.330" overall length 62-1631
Piston, .49" stroke, 1.370" overall length 62-1641
Fitting, union, AN3, male 73-815-3L
Tool, positive stop removal 62-1690
















9000 SERIES
Typical Application: Applications that require a hydraulic release bearing with a reduced piston area,

  enabling the use of a 5/8" master cylinder (OE in many production cars)
  with a 7.25" clutch. Mounts onto transmission/bellhousing (typically with an
   adapter).
Mount: 2-bolt
Material: Billet aluminum body and piston
Piston area: .93 in2 (600mm2)
Maximum stroke: .600" (15.2mm)
Ports: AN3 (3/8"-24)
Weight: .56 lbs (varies by part number)
Includes: Supply and bleed port fittings

Clutch Type Part Number Contact Diameter (A) Inside Diameter (B) Overall Height (C) Uses Piston Uses Bearing
7.25" Tilton 61-9002 44mm 30,0mm 49,5mm   62-031
7.25" Tilton 61-9012 44mm 30,0mm 51,3mm   62-031



Service Parts
Description Part Number
Seal kit 62-9980
Replacement bearing, 44mm contact diameter, radius face 62-031
Fitting, union, AN3, male 73-815-3L























HRB ADAPTORS
No. Car Clutch Type HRB
62-874 HRB adaptor Corvette T56   800 series HRB
62-892 HRB adaptor E46 320   800 series HRB
62-882 HRB adaptor 993/996/997 (all G50 gearboxes) 5.5”  3- Plate Metallic Clutch 800 series HRB
62-882 HRB adaptor 993/996/997 (all G50 gearboxes) 5.5”  3- Plate Carbon Clutch
62-882 HRB adaptor 993/996/997 (all G50 gearboxes) 7.25”  2- Plate Metallic Clutch
62-880 HRB adaptor 993/996/997 (all G50 gearboxes) 7.25”  3- Plate Carbon Clutch
62-999K HRB adaptor Ford type 9   800 series HRB

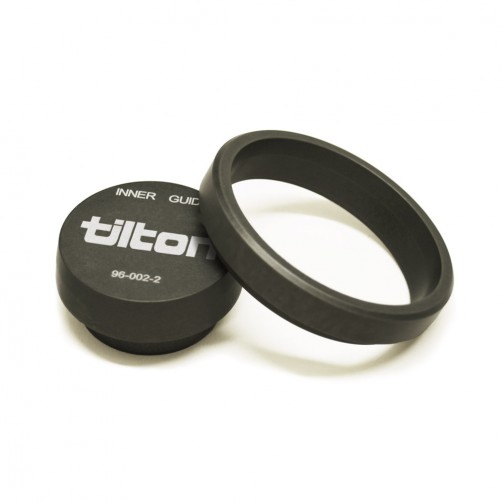

HRB Tool
No.   Suitable for Tilton’s HRB seal installation tool makes it easy to replace seals in Tilton HRBs. To use the HRB seal installation tool, place the inner and outer guides, lubricate the seal (flat side up), and press in with the piston supplied with your HRB. The HRB seal installation tool is compatible with all Tilton HRBs (except the 9000-series).


96-002 HRB Seal Installation Tool All but 9000 Series











mechbearing

MECHANICAL RELEASE BEARINGS


BMW 5-BAK: E36/E46/Z3/Z4   Mustang 1979-2004

tbv Drugroep     tbv Drugroep
1-plaats metallic 62-020
2-plaats metallic 62-020
3-plaats metallic 62-021     3-plaats metallic 62-062

1-plaats Cera Metallic 62-020
2-plaats Cera Metallic 62-021   2-plaats Cera Metallic 62-063

Staal

Directe vervanging voor het Orginele druklager, met een 44mm lager


1













RELEASE BEARINGS



62-002

In (mm)  ± 40.00   62-031   In (mm) ± 35.80
Out (mm) ± 63.70     Out (mm) ± 55.00



 Contact  (mm) ± 52.0



   Contact  (mm) ± 44.0
etched No. SF0815     etched No. FCR 44-2
per 2013 40TRK39-4S8

62-002-5   In (mm) ± 40.00   62-616   In (mm) ± 40.47
Out (mm) ± 67.10     Out (mm) ± 69.50



 Contact  (mm) ± 44.5



   Contact  (mm) ± 54.5
etched No. SF0823     etched No.

62-004   In (mm) ± 52.35   62-6261   In (mm)
Out (mm) ± 85.60     Out (mm)



 Contact  (mm) ± 60.0       Contact  (mm)
etched No. 3/W21/16ND     etched No.

62-008   In (mm) ± 32.00   62-6161   Thrust ring, enlarges P/N 62-616 contact diameter
Out (mm) ± 55.00



 Contact  (mm) ± 38.0 Contact  (mm) ± 84
etched No. 6907 L8

62-0085   In (mm) ± 31,75
  Out (mm) ± 55,00
    Contact  (mm) ± 38,00
    etched No.

Lijst met zuigers en welke lagers er geschikt voor zijn

















PISTONS





Piston Height inch/mm For Bearings For HRB's
62-1631   62-031 1600
62-1641   62-031 1600



62-6000 1.215 / 30,9mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6001 1.315 / 33,4mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6002 1.415 / 35,9mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6003 1.515 / 38,5mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6004 1.615 / 41,0mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6005 1.715 / 43,6mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6006 1.815 / 46,1mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6007 1.915 / 48,6mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6008 2.015 / 51,2mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering
62-6009 2.115 / 53,7mm 62-008 / 62-031 60-x2xx   or   60-x3xx  Series HRB's Self centering



62-6100 1.240 / 31,5mm 62-618 60x1xx  Series HRB's

62-612 1.530 / 38,9mm 62-002 60-x0xx Series HRB's

62-6200 0,500 / 12,70mm 62-031 8000
62-6201* 0,550 / 13,97mm 62-031 62-6201 = N.L.A.
62-6204 0,700 / 17,78mm 62-031
62-6205 0,750 /  19,05mm 62-031




62-686   62-031 8000
